Product Description:

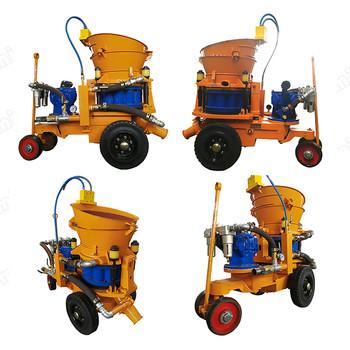

The concrete spraying machine – also known as a shotcrete machine – is designed for efficient and precise production of concrete or
mortar spray. With a max. aggregate diameter of 20mm, a hopper capacity of 100L and a max. conveying height of 20m, this shotcrete machine is suitable for both small and
large construction projects.
The concrete spraying machine features a high efficiency air
compressor, with an air consumption of 5-10m³/min, and a powerful electric motor with power ranging from 3-7.5KW. The machine is easy to operate and maintain,
with a compact design and fast installation.
This shotcrete machine is designed to be highly reliable and
efficient, and is suitable for all types of construction projects.
With its high-performance components and reliable operation, this
shotcrete machine is the ideal choice for any construction project.
Features:
- Product Name: Concrete Shotcrete Machine
- Max. Output: 2-8m³/h
- Max. Conveying Height: 20m
- Weight: 450Kg
- Hopper Capacity: 100L
- Function: Wet shotcrete machine, dry shotcrete machine
Technical Parameters:
| Parameter | Value |
|---|
| Product Name | Concrete Shotcrete Machine |
| Max. Output | 2-8m³/h |
| Max. Conveying Distance | 150m |
| Max. Conveying Height | 20m |
| Max. Aggregate Diameter | 20mm |
| Air Pressure | 0.2-0.4Mpa |
| Noise | ≤85db |
| Dimension | 1800*1200*1400mm |
| Power Supply | Electricity |
| Warranty | 1 Year |
Applications:
KEMING's KPZ/KSP concrete shotcrete machine is a heavy-duty
spraying machine designed to spray concrete or mortar to a certain
thickness efficiently and quickly. With CE and MA certification, it
is one of the most reliable and trustworthy products in the market.
It is ideal for a wide range of applications, such as tunnel
lining, slope stabilization, foundation, pool, and other civil
construction projects. Its high-performance features make it
suitable for all kinds of construction sites.
The KPZ/KSP shotcrete machine is equipped with a 50L material
cylinder capacity that can work with air consumption of 5-10m³/min.
Its dimension is 1800*1200*1400mm and its weight is 450Kg. This
machine has a maximum conveying distance of 150m, allowing it to
spray concrete of thickness up to 15cm in a single pass, making it
an effective and efficient machine.
The KPZ/KSP concrete shotcrete machine is an ideal choice for those
who are looking for a reliable and efficient concrete spraying
machine. With its CE and MA certification, it is sure to meet the
demands of all kinds of construction sites. It is easy to install
and operate, making it ideal for any construction site.
Packing and Shipping:
Packaging and Shipping for Concrete Shotcrete Machine:
The Concrete Shotcrete Machine will be packaged in a wooden box
with a waterproof cover to protect the machine during transport.
The box will be surrounded by foam, bubble wrap, and other
cushioning materials to protect the machine from shocks during
shipping. The machine will be shipped using a reputable shipping
company, and the customer will be given a tracking number to follow
the progress of the shipment.
FAQ:
Q&A for Concrete Shotcrete Machine
Q1: What is the brand of this shotcrete machine? A1: This shotcrete
machine is KEMING brand. Q2: What is the model number of this
machine? A2: This shotcrete machine is model KPZ/KSP. Q3: Where is
this shotcrete machine manufactured? A3: This shotcrete machine is
manufactured in China. Q4: Does this shotcrete machine have
certifications? A4: Yes, this shotcrete machine has CE and MA
certifications. Q5: What is the minimum order quantity? A5: The
minimum order quantity is 1 unit.
