Brand Name : | KEMING |

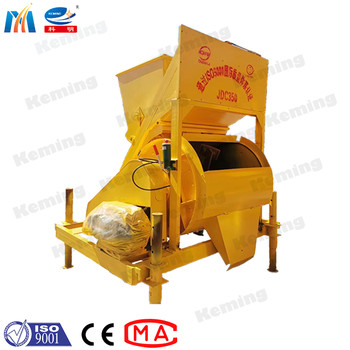

Model Number : | JDC Type Single Shaft Forced Concrete Mixer |
Certification : | CE, MA |
Price : | Negotiation |
Payment Terms : | T/T, L/C |
Supply Ability : | 100 Sets/Per Month |
Delivery Time : | 5~8 Work Days |
1. JDC type single-horizontal shaft forced concrete mixer is a new type of multifunctional mixing machine.
2. The wheeled type is suitable for small and medium-sized prefabricated component factories and various construction sites. It is the most convenient to install in conversion sites.
JDC Type Single Shaft Forced Concrete Mixer Application:
1. The fixed type is more excellent when matched with a one-ton motor dump truck.
2. JDC type single-horizontal shaft forced concrete mixer is a new type of multifunctional mixing machine.
Model | JDC350 | JDC500 |
Discharging capacity (L) | 350 | 500 |
Charging capacity (L) | 560 | 800 |
Productivity(m3/h) | 17.5 | 20-30 |
Max size of aggregate(mm) | 60/40 | 80/60 |
Stirring shaft speed(r/min) | 27.6 | 24 |
Total power(kW) | 20.25 | 25.1 |
Stiring time(s) | 30 | 30 |
Dimensions (length * width *height)(mm) | 3100x2450x3200 | 3800x2650x3400 |
Total Weight(kg) | 3200 | 4700 |
![]() |
