    KEMING Concrete Grout Mixer Batching Plant With Mixing Host 80m3 / H

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KEMING Concrete Batching Plant
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    KEMING Concrete Grout Mixer Batching Plant With Mixing Host 80m3 / H

    Building Material Used KEMING Concrete Batching Plant with Mixing Host

    KEMING Concrete Batching Plant Introduction:

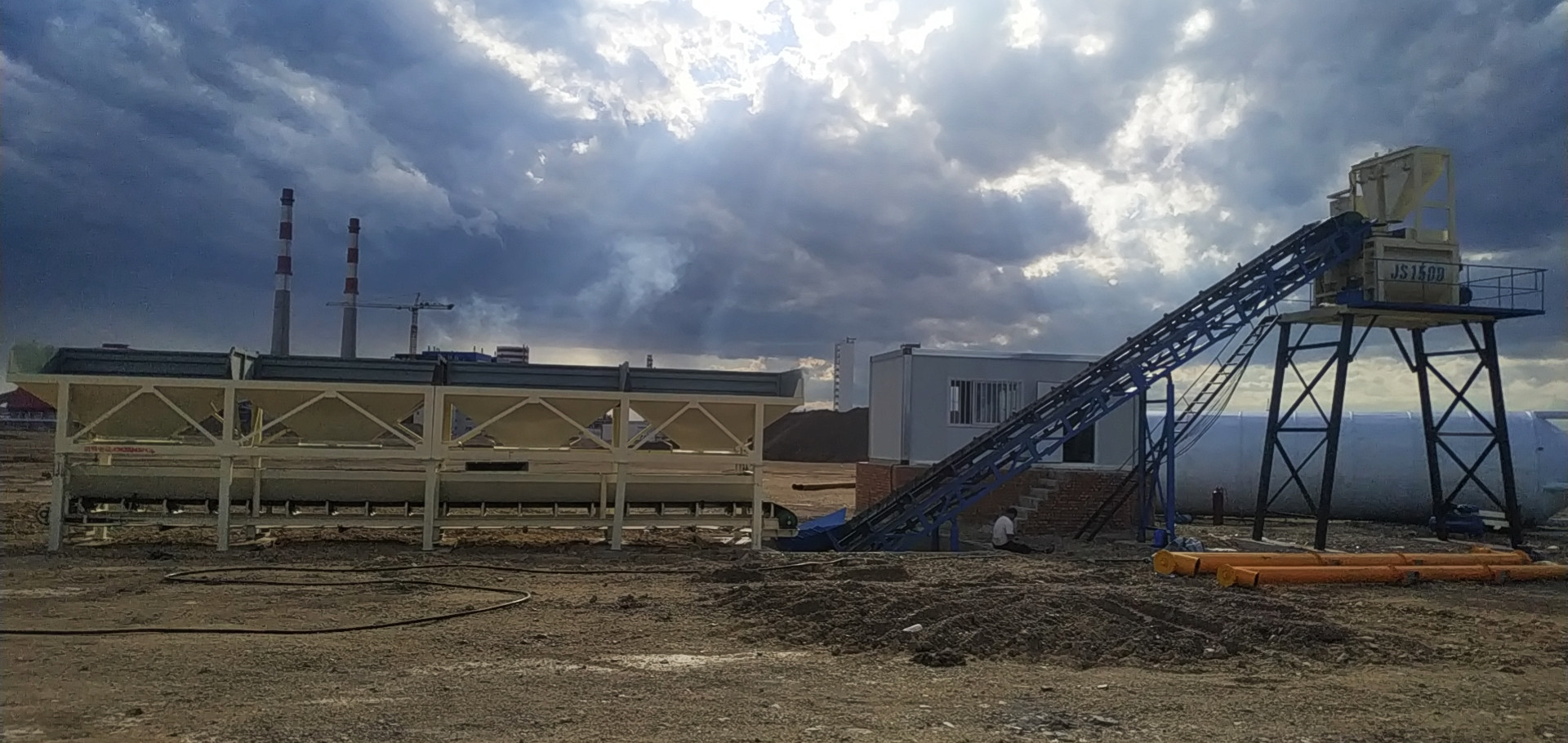

    1. HZS concrete batching plant is a building material manufacturing equipment composed of major systems: mixing host, material conveying system, control system and other auxiliary facilities.

    2. The sand, cinder and other raw materials are mixed and stirred.


    KEMING Concrete Batching Plant Feature:

    1. The concrete mixing plant has good mixing performance.

    2. The equipment adopts the screw type twin-shaft forced mixing main engine

    KEMING Concrete Batching Plant Technical Parameters:

    ModelHZS25HZS35HZS50
    Mixing capacity25m3/h35m3/h50m3/h
    Mixing Cycle Time72s72s72s
    Aggregate amount2~33~44
    Total Installed Capacity60kW80kW111kW
    Mixing modelJS500JS750JS1000
    Charging Capacity/Discharging Capacity800/500L1200/750L1600/1000L
    Mixing time60s60s60s
    Maximum particle size of aggregate (pebble/crushed stone)<60/80mm<60/80mm<60/80mm
    Discharge height2000/3800mm3800mm3800mm
    Batching Machine modelPLD800PLD1200PLD1600
    Aggregate weighing range0-2000kg0-2000kg0-2000kg
    Weighing accuracy±2%±2%
    ±2%
    Cement weighing range0-250kg0-400kg
    0-500kg
    Weighing accuracy±1%±1%±1%
    Water weighing range0-150kg0-250kg0-300kg
    Weighing accuracy±1%±1%±1%
    Admixtures weighing range0-25kg0-30kg0-50kg
    Weighing accuracy±1%±1%±1%
