Automatic Feeding Dry Mix Shotcrete Machine 7m3/H Self Loading

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Automatic Feeding Dry Mix Shotcrete Machine 7m3/H Self Loading from wholesalers

    Buy cheap Automatic Feeding Dry Mix Shotcrete Machine 7m3/H Self Loading from wholesalers
    • Buy cheap Automatic Feeding Dry Mix Shotcrete Machine 7m3/H Self Loading from wholesalers

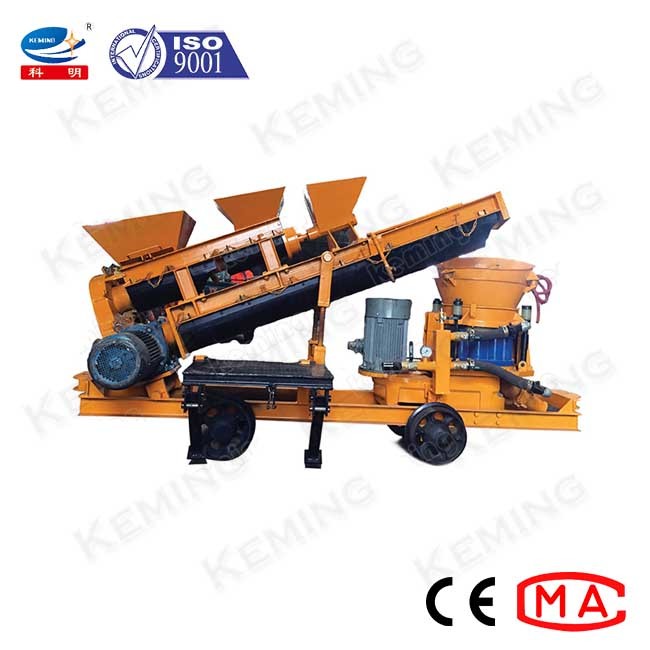

    Automatic Feeding Dry Mix Shotcrete Machine 7m3/H Self Loading

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : JPS7IL
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

    Automatic Feeding Dry Mix Shotcrete Machine 7m3/H Self Loading

    Dry & Damp Mix Shotcrete Machine Automatic Feeding With Good Price And High Quality

    Shotcrete Machine Features:

    1. JPS7I-L Self-loading Wet Shotcrete Machine in Mining Equipment has long conveying distance, fewer dusts, reliable performance.

    2. JPS7I-L Self-loading Wet Shotcrete Machine has automatic feeding,simplified operation, convenient maintenance and cleaning.

    3. JPS7I-L Self-loading Wet Shotcrete Machine includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.

    Shotcrete Machine Application:

    1. JPS7I-L Self-loading Wet Concrete Shotcrete Machine can spray half wet or wet concrete.

    2. JPS7I-L Self-loading Wet Concrete Shotcrete Machine is widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.

    Shotcrete Machine Parameters:

    Items
    Unit
    Technical parameters
    Capacity
    m3/h
    5~7
    Conveying dist.
    m
    70/20
    Suitable water and cement ratio
    >0.3
    Addictive ratio of powdery accelerator
    /
    3%~7%
    Aggregate size max.
    mm
    ≤20
    Conveying pipe ID.
    mm
    φ51
    Operating pressure
    MPa
    0.2~0.5
    System air pressure
    MPa
    ≥0.5
    Air consumption
    m3/min
    ≥10
    Material feeding height
    m
    1.1
    Motor type
    kw
    5.5/7.5
    Voltage
    V
    380/660 or 660/1140
    Machine gauge
    mm
    600(900)
    Dimensions (Length×width×height)
    mm
    3179×820×1900
    Total weight
    kg
    1150
