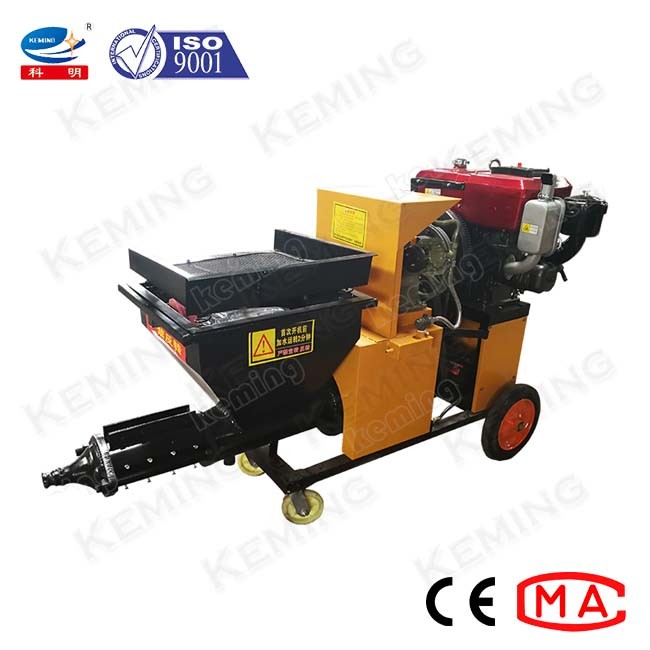

Mortar plastering machine with mixer diesel cement plastering machine
Application:
1. KLW Plastering Machine is a multi-functional plastering
equipment, widely used for pumping and spraying ready-mixed
materials.
2. Engineering grouting: pressure grouting for reservoir,
hydropower station, dam, port, wharf; reinforcement grouting for
soft foundation; backfill grouting or rock bolting for tunnel,
subway, mining well etc.
3. Slurry circulation or mortar backfill in deep mine construction
of ground source heat pump.
4. Mortar delivery for weighbridge, masonry and plastering. Mortar
delivery and plastering of commercial mortar or other mortar with
equivalent performance.
Mortar spraying machine is a good help for you to transport materials and plaster. When you stop transporting, spraying and coordinating homework, you can greatly save construction time and rest, and improve effectiveness. The average efficiency of mortar spraying machine construction is about 4 times that of manual construction.
Other mortar spraying machines have good operation performance, high reliability during application, less ash on the ground, average cloth during spraying, high adhesion, and not easy to fall off. Can greatly improve the effectiveness of rest and reduce your labor costs.
The advantages are large flow rate and high pressure. The direct injection type and the wall hitting and floating make the mortar denser, which is better than the national standard.
Specification:
model | spraying distance | capacity | power | aggregate size | pressure | air consumption | hopper volume | dimension |
KLW-120 | 10m/15m | 110-120 m2/h(mortar)200-300 m2/h(putty)3m3/h (grouting) | 4 kw | 4mm | 2MPa | 2.2 kw 0.26m3/min | 35L | 1300x650x900mm |
KLW-120D | 10m/15m | 120-130 m2/h | 12hp | 4mm | 2MPa | 0.26m3/min | 35L | 1800x850x1300mm |
KLW-150 | 15m/25m | 120-150 m2/h | 7.5 kw | 5mm | 3MPa | 2.2 kw 0.36m3/min | 50L | 2150x730x1100mm |
KLW-150D | 15m/25m | 150-160 m2/h | 15hp | 5mm | 3MPa | 0.4m3/min | 50L | 2050x950x1300mm |
KLW-180 | 20m/50m | 150-180 m2/h | 7.5 kw | 6mm | 3MPa | 2.2 kw 0.4m3/min | 50L | 2350x750x700mm |
KLW180J with mixer | 20m/50m | 150-180 m2/h | 7.5 kw 3kw | 6mm | 3MPa | 2.2 kw 0.4m3/min | 60L | 2350x750x1300mm |
Certification:
In July 2009, the company passed the ISO9001:2008 Quality
Management System Certification. In October 2010, the company was
entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second
prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan
Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE
Certification.
Related machines:
Our main machines are : Shotcrete equipment, grouting equipment,
mixing equipment, plastering equipment, hose pump etc.
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Full automatic plastering machine:
Shotcrete machine:
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and
Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan
Coal Scientific Research Institute) is a holding subsidiary of
Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development,
production and sales of shotcrete machine, grouting pump, and
complementary products. Up to now, we have developed more than 50
kinds of products, covering spraying machines, pumps and other
series of products.
Achievements: Our company has obtained more than 20 national invention patents
and utility model patents, more than 10 scientific and
technological achievements appraisal awards, 8 awards from China
National Coal Association and Department of science and technology
of Henan province, and the second prize of Henan Provincial S&T
Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in
the research and production of mining machinery, engineering
machinery and supporting equipment for underground engineering, as
well as environment protection, chemical industry, inspection and
testing of mining equipment, research and production of mechanical
and electrical products, technology and finance, management and
technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect
service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding
listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to
the society
Be responsible for the shareholder, increase the assets value,
stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in
peace
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight
(high bank charge, not suggest, but acceptable);100% TT in advance
(especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from
damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It
depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour
service hotline. Also, our engineers are available to service
overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic
technical skills. And, we provide online and onsite technical
training if necessary.
![]() |
