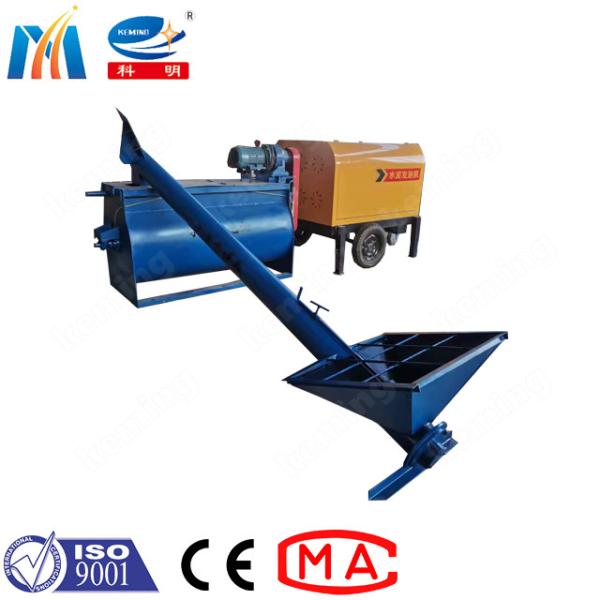

China 600kg/Cbm CLC Blocks Cement Foaming Machine With Screw Feeder
And Mixer
Introduction:
CLC blocks cement foaming machine are made of cellular light weight
concrete or foam concrete. Cellular light weight concrete is a
light weight concrete that is producted by mixing cement and flyash
slurry with preformed foam.
These CLC blocks are competitive with red clay bricks in pricing
and offer significent savings for finished structures.
Cement foaming machine and cement foaming agent are a technical
system that cooperates with each other, and cannot function alone.
Features:
1. Concrete Foaming Machine combines feeding machine, water adding
device, mixing system, foaming system, delivery system together. It
is convenient to operate, automatic cement feeding, automatic
mixing of cement slurry, automatic foaming of foaming agent,
automatic delivery of foaming concrete.
2. The machine adopts high pressure foaming technology with good
foaming performance,even,high quality,unbreakable,accurate(foaming
amount can be precisely controlled within mg).
3. Delivery system adopts the most advanced pumping system of hose
pump, with simple operation, low fault rate, less wearable parts,
convenient maintenance,and low cost.
4. The machine shell is made of high strength and precious steel
plate, which is painted at high temperature of 280℃ and has long
service life.
5. The machine saves production costs and improves economical
returns.Compared with similar products, the machine can save
50~100kg cement per cubic meter product.
6.The machine is the ideal equipment of foaming cement,with light
weight,small size, convenient movement, high efficiency.
Specification:
| model | capacity m3/h | pressure MPa | power kw | delivery distance m | squenze hose ID mm |
| KFP32 | 1-5 | 1 | 4 | 30/10 | 32 |
| KFP50 | 1-8 | 2 | 5.5 | 100/50 | 50 |
| KFP70 | 1-10 | 3 | 7.5 | 200/70 | 50 |
| KFP100 | 1-15 | 4 | 7.5 | 300/100 | 60 |
| KFP120 | 1-25 | 4 | 11 | 300/120 | 65 |
| KFP150 | 1-30 | 4 | 11 | 400/80 | 75 |
Related machines:
Our products are mainly applied in water conservancy and hydropower
engineering, subway engineering, air-raid shelter construction,
municipal construction, environmental greening projects, tunnel and
bridge maintenance, slope maintenance, blast-furnace refractories
spraying operations, mining concrete spraying operations, etc.

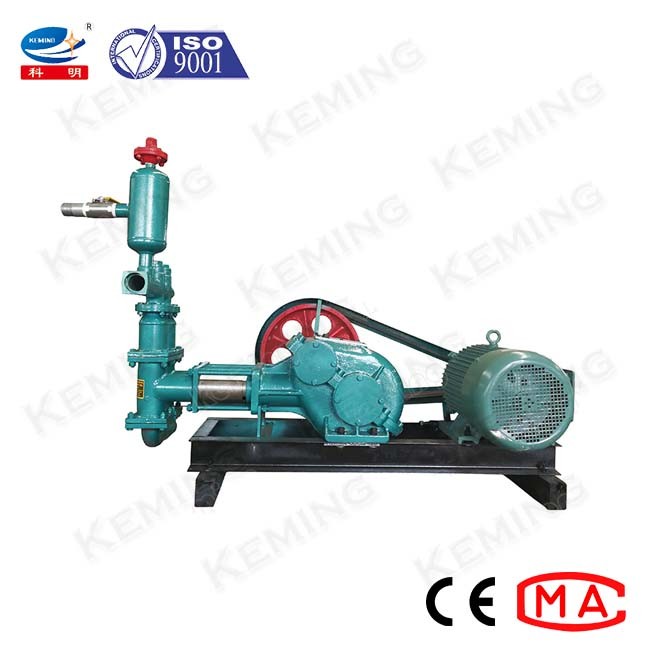

Mud pump:
Shotcrete robot:
Certification:
In July 2009, the company passed the ISO9001:2008 Quality
Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial
High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second
prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan
Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE
Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and
Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research
Institute Co., Ltd.
Our company is dedicated to the research and development,
production and sales of shotcrete machine, grouting pump, and
complementary products. Up to now, we have developed more than 50
kinds of products, covering spraying machines, pumps and other
series of products.
Achievements: Our company has obtained more than 20 national invention patents
and utility model patents, more than 10 scientific and
technological achievements appraisal awards, 8 awards from China
National Coal Association and Department of science and technology
of Henan province, and the second prize of Henan Provincial S&T
Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in
the research and production of mining machinery, engineering
machinery and supporting equipment for underground engineering, as
well as environment protection, chemical industry, inspection and
testing of mining equipment, research and production of mechanical
and electrical products, technology and finance, management and
technology consulting service, and other industries.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight
(high bank charge, not suggest, but acceptable);100% TT in advance
(especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from
damage during the long-distance delivery. 4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It
depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour
service hotline. Also, our engineers are available to service
overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic
technical skills. And, we provide online and onsite technical
training if necessary.
