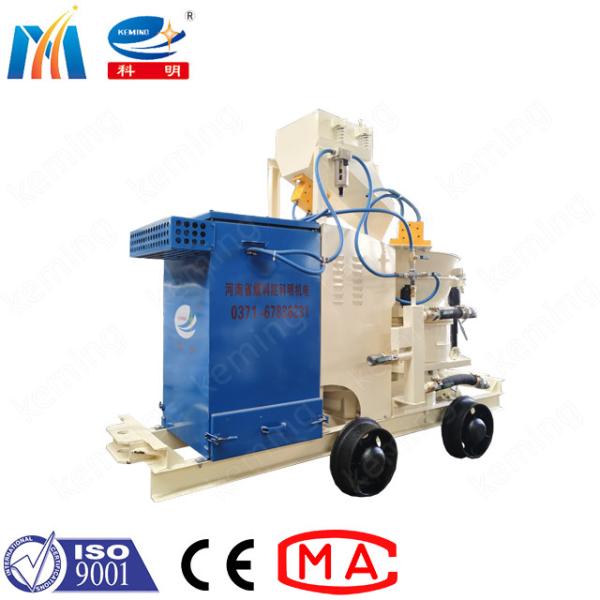

Dust Collection Concrete Jet Machine Gunite Electric Concrete Pumps
Application:
1. Collection and exhaust device of leaked air of hopper, rotor
liner plates, reducing the dust leakage.
2. New dust removal technology and filter material, with good
filtering effect and long service life.
3. Drawer-type dust container, convenient to clean.
4. Spraying nozzle system with multiple circular water adding
device, ensuring even mixing.
5. Accelerator added by vibration, ensuring micro adjustment and
proper adding ratio.
Features:
1. KCPZ Dedusting Shotcrete Machine obtains the Invention Patent
and Utility Model Patent.
2. The machine structure and spraying nozzle have new designs. New
environmental shotcrete machine, less environmental pollution (less
than 90% of dust pollution of traditional machine), less harm to
workers’ health.
3. New spraying nozzle device, even concrete mix, low rebound rate.
Adding accelerator automatically and evenly, saving labor.
4. Compact machine structure, simple operation, suitable for
concrete operation in narrow space.
5. The upper and lower air overflow and the air leakage of the
rotor friction plate are collected and installed everywhere to
prevent dust from being discharged;
6. New type of dust removal technology and filter material, with
good filtering effect and long service life;
7. Drawer-type dust accumulation container, easy to clean;
8. Multi-layer annular water spray nozzle system to ensure uniform
mixing;
9.The quick-setting agent is fed by vibration and adjusted in a
small amount to ensure the addition ratio.
Specification:
| KCPZ shotcrete machine |
| capacity | 6m3/h |
| delivery distance | 100m/30m(horizontal/vertical) |
| max. aggregate size | ≤20mm |
| delivery pipe ID | 51mm |
| rated working pressure | 0.5 MPa |
| air consumption | ≤8m3/min |
| feeding height | 1.1m |
| rebound rate | ≤20% |
| dust concentration | ≤15mg/m3 |
| rotor rev.speed | 11 r/min |
| main motor power | 7.5 kw |
| dust collector motor power | 1.1 kw |
| main motor rev.speed | 960 r/min |
| accelerator adding hopper | 25 kg |
| dimension | 2150x900x1750 mm |
| weight | 980 kg |
Company information:
Henan Coal Science Research Institute Keming Mechanical and
Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan
Coal Scientific Research Institute) is a holding subsidiary of
Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development,
production and sales of shotcrete machine, grouting pump, and
complementary products. Up to now, we have developed more than 50
kinds of products, covering spraying machines, pumps and other
series of products.
Achievements: Our company has obtained more than 20 national invention patents
and utility model patents, more than 10 scientific and
technological achievements appraisal awards, 8 awards from China
National Coal Association and Department of science and technology
of Henan province, and the second prize of Henan Provincial S&T
Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in
the research and production of mining machinery, engineering
machinery and supporting equipment for underground engineering, as
well as environment protection, chemical industry, inspection and
testing of mining equipment, research and production of mechanical
and electrical products, technology and finance, management and
technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect
service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding
listed company
Corporate responsibility: Be responsible for the society, operate
lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value,
stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in
peace
Related machines:
Our main machines are : Shotcrete equipment, grouting equipment,
mixing equipment, plastering equipment, hose pump etc.
Certification:
In July 2009, the company passed the ISO9001:2008 Quality
Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial
High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second
prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan
Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE
Certification.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight
(high bank charge, not suggest, but acceptable);100% TT in advance
(especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from
damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It
depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour
service hotline. Also, our engineers are available to service
overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic
technical skills. And, we provide online and onsite technical
training if necessary.
If you have any other questions, pls feel free to contact us , will
choose the most suitable machines for you !
