    Remote Gunite Shotcrete Machine Full Hydraulic Power 11r/Min

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : PS5IL-J
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

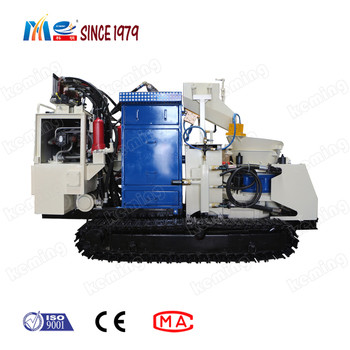

    Remote Gunite Shotcrete Machine Full Hydraulic Power 11r/Min

    Popular in Mine of China new-developed remote gunite machine using full hydraulic power

    Full hydraulic remote conveying gunite machine Introduction:

    1. The friction plate is pressed hydraulically.

    2. The friction plate and rotating liner are automatically lubricated.

    3. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.

    Full hydraulic remote conveying gunite machine Features:

    1. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

    2. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

    3. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted.

    Full hydraulic remote conveying gunite machine Parameters:

    raying part

    Capacity

    m3/h

    2~7

    Delivery distance

    m

    >300

    Max. aggregate size

    mm

    ≤20

    Delivery pipe ID.

    mm

    φ51

    Air consumption

    m3/min

    ≤8

    Rotor speed

    r/min

    11

    Dedusting part

    Capacity

    m³/h

    800

    Pressure

    Pa

    2600

    Walking mechanism

    Way of walking

    Crawler

    Walking speed

    km/h

    ≤1.5

    Gradeability

    ≤15

    Braking method

    Hydraulic

    Hydraulic system

    Motor Power

    kw

    18.5

    Fuel tank capacity

    L

    200

    Cooling method

    Air cooling


    Remote Gunite Shotcrete Machine Full Hydraulic Power 11r/Min
