    Electric Motor Mine Dry Gunite Shotcrete Machine 9m3/H 0.6Mpa

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPZ-3
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

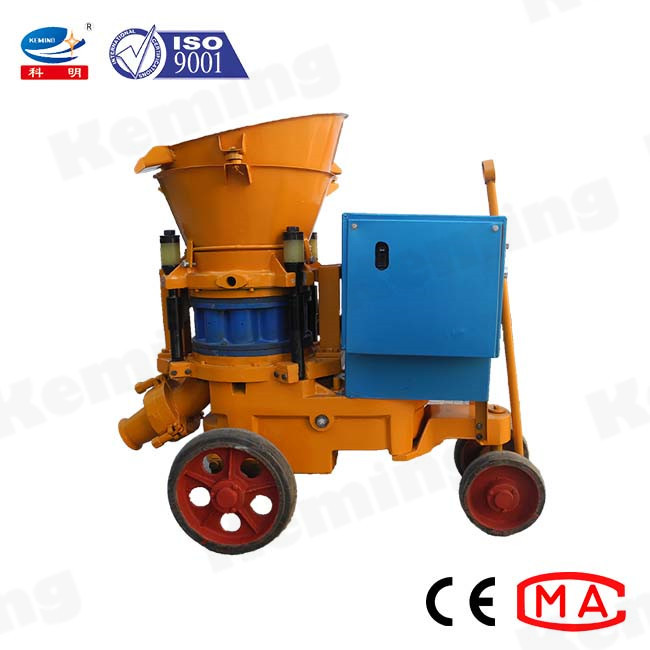

    Electric Motor Mine Dry Gunite Shotcrete Machine 9m3/H 0.6Mpa

    Customized KPZ dry gunite shotcrete machine using electric motor for mine

    Electric Dry Shotcrete Machine Introduction:

    1. Electric dry shotcrete machine is designed for spraying dry, damp and wet mixture.

    2. Electric dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box.

    3. It has advanced technology, rational structure, convenient operation, stable performance and long service life.

    Electric Dry Shotcrete Machine Application:

    1. Electric dry shotcrete machine can be used for dry or half wet concrete spray construction.

    2. It is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

    Electric Dry Shotcrete Machin Parameters:

    KPZ Series (Electric motor)
    ModelKPZ-3KPZ-4KPZ-5/PC5IKPZ-7KPZ-9
    Output2-3m3/h3.5-4.5m3/h4.5-5.5m3/h6-7m3/h7.5-8.5m3/h
    Max. conveying dist.250m230m200m150m100m
    Max. aggregate size15m18m20m20m20m
    Hose inner diameterφ42/51mmφ42/51mmφ51mmφ57mmφ57/64mm
    Air consumption5-6m3/min6-7m3/min7-8m3/min8-9m3/min9-10m3/min
    Motor power3kw5.5kw5.5kw7.5kw7.5kw
