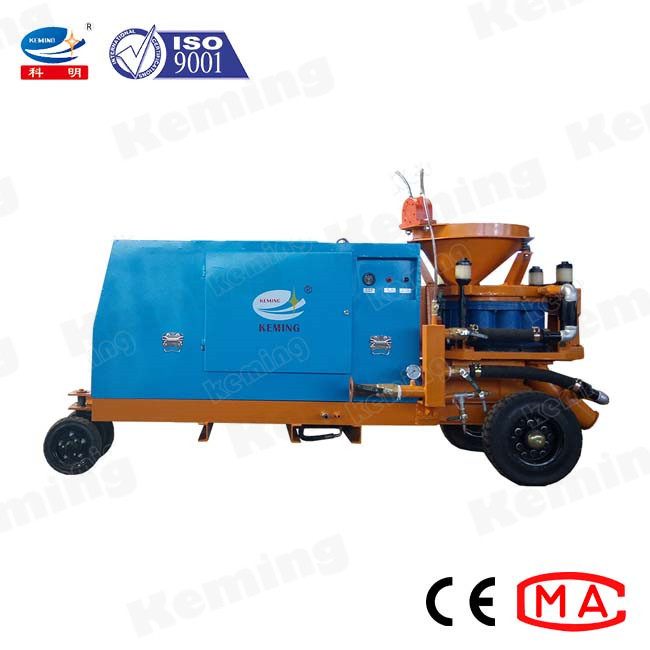

    Rotory Diesel Gunite Concrete Spray Shotcrete Machine 9m3/H

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPZ-5D
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

    Rotory Diesel Gunite Concrete Spray Shotcrete Machine 9m3/H

    High-demanded in market KEMING KPZ diesel gunite shotcrete machine for spraying shotcrete

    Diesel Gunite Machine Introduction:

    1. KPZ Diesel gunite Machine can be applied in spraying dry, damp and wet mixture.

    2. It is consisted of driving device, rotor assembly, air system, concrete spraying system.

    3. KPZ Diesel gunite Machine has rational structure, stable performance, advanced technology, convenient operation and long service life.

    Diesel Gunite Machine Application:

    1. Diesel gunite shotcrete machine can be used for dry or half wet concrete spray construction.

    2. It is widely used in the tunnel, culvert, subway, hydroelectric works, underground works, slope reinforcement and high-methane laneway of coal mine etc.

    Diesel Gunite Machine Parameters:

    KPZ Series (Diesel Engine)

    ModelKPZ-3DKPZ-4DKPZ-5DKPZ-7DKPZ-9D
    Output2-3m3/h3.5-4.5m3/h4.5-5.5m3/h6-7m3/h7.5-8.5m3/h
    Max.Conveying dist.250m230m200m150m100m
    Max.aggregate size15mm18mm15mm20mm20mm
    Hose inner diameter

    φ42/51mm

    φ51mm

    φ51mm

    φ57mm

    φ57mm

    Air consumption5-6m3/min6-7m3/min7-8m3/min8-9m3/min9-10m3/min
    Motor power6.9KW(10hp)13KW(18hp)13KW(18hp)16.2KW(22hp)16.2KW(22hp)
