Electrical Engine KLW 180 Screw Type Grout Pump With High Grouting
Pressure
Overview:

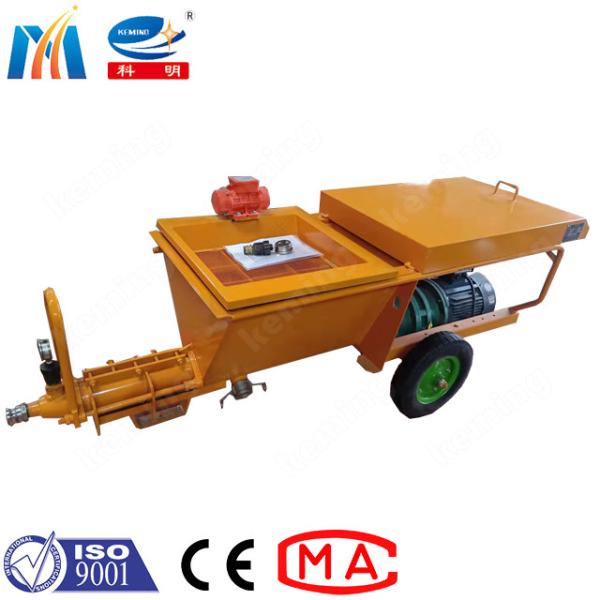

KEMING KLW180 Mortar Grouting machine is a new developed
high-pressure screw type mortar plastering pump. Due to its
advanced technology, convenient operation and maintenance,
functional advantages.
The spare parts are mainly rotor and stator, the mortar material
size need to below 6mm. too large size of the material will making
block.
The screw type grouting pump adopts advanced screw pressurization
technology, developed and combined with construction engineering
field practice, and then improved. It has become mature and widely
used in construction engineering, and has been extended to the coal
industry for grouting of underground loose rock formations,
consolidation or anchor hole grouting, and various slurries of fire
extinguishing agents under various working conditions.
The pressure and slurry consistency can be adjust at any time when
the grouting process, so that the grouting pressure and the amount
of slurry can also be adjusted.
This series of pumps has the advantages of compact structure and
convenient disassembly and maintenance.
Conditions of Use:
The working environment temperature of this pump is 0~40℃, and the
normal working temperature of its oil temperature is 40~65℃.
The working environment of the pump does not exceed 1000m above sea
level, and it should be treated as a special case if it exceeds
1000m.
When the pump is working, the whole machine should be placed on a
level and solid ground.
Parameter:
| Items | Parameters |
| Capacity | 2m3 /h | 3m3 /h |
| Delivery pressure | 1~3MPa |
| Delivery distance | 20m | 30m |
| Max. particle size | 4mm | 5mm |
| Water: cement: sand | 0.7~1:1:3 |
| Hopper capacity | 40L | 50L |
| Power | 4kW | 7.5kW |
| Voltage | 380v |
| Weight | 200Kg | 300kg |
| Dimensions | 1300*650*900mm | 1800*700*1100mm |
| Auxiliary delivery hose | 32mm | 32/38mm |
