Brand Name : | KEMING |
Model Number : | KBT concrete mixer pump |
Certification : | CE,MA |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 100 Set/Per Month |
Delivery Time : | 10~20 Work Day |

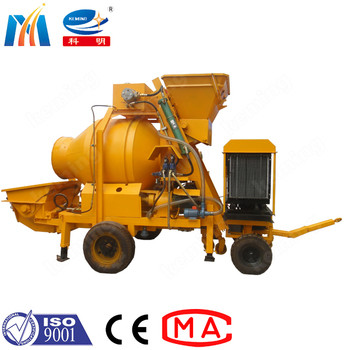

1. KBT series Concrete Mixer Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
2. Concrete pump has double cylinder hydraulic pump system with reliable performance.
1. remote control with high automatic degree and easy operation, saving labor cost.
3. independent mixing system with even mixing performance and high working efficiency.
1. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. pump plain concrete and fiber concrete in engineering construction.
4. pump refractory and thermal insulation material.
Items | Unit | Parameters | |||||
KBT2506/JZM450 | KBT2506/JZM350 | KBT2006/JZM300 | KBT20/JZC350 | KBT0804/JZC200 | |||
Capacity | m3/h | 25(18) | 25(18) | 20(13) | 20(15) | 8(6) | |
Max. aggregate size | mm | 40 | 40 | 40 | 40 | 30 | |
Delivery pipe | mm | DN125 | DN125 | DN125 | DN125 | DN125 | |
Max. dist | horizontally | m | 200 | 200 | 150 | 150 | 100 |
vertically | m | 80(60) | 80(60) | 60(40) | 60(40) | 30 | |
Mixer type | JZM450 | JZM350 | JZM300 | JZC350 | JZC200 | ||
Charge hopper | L | 720 | 560 | 500 | 560 | 300 | |
Discharge hopper | L | 450 | 350 | 300 | 350 | 200 | |
Diameter of drum | mm | 1550 | 1440 | 1260 | 1440 | 1000 | |
Output pressure | Mpa | 6-8 | 6-8 | 5-8 | 5-8 | 3-5 |
![]() |
