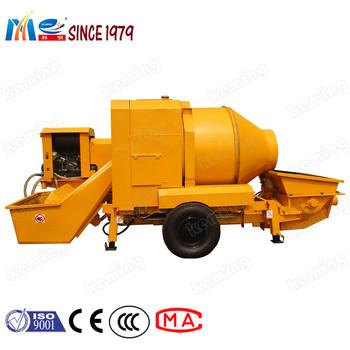

Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor from wholesalers

    Buy cheap Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor from wholesalers
    • Buy cheap Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor from wholesalers

    Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KMB-30 Diesel shotcrete Pump
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

    Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor

    Top-one-selling in market shotcrete Pump/Concrete grout Pump with diesel motor

    Shotcrete Pump/Concrete Grout Pump Introduction:

    1. Excellent performance in suction.

    2. Low resistance parabolic S tube.

    3. long spraying distance: 300m horizontally and 100/80m vertically.

    Shotcrete Pump/Concrete Grout Pump Application:

    1. Optimal design of the hopper.

    2. Low resistance parabolic S tube.

    3. long spraying distance: 300m horizontally and 100/80m vertically.

    Shotcrete Pump/Concrete Grout Pump Parameters( in diesel motor):

    ItemsUnitParameters
    KMB-50KMB-40KMB-30KMB-20KMB-10KMB-8
    Capacitym3/h50(30-34)40(25-30)30(20-25)20(15)10(8)8(6)
    Max. aggregate sizemm403020202515
    Delivery pipemmDN150/DN125DN125/DN100DN125/DN100DN125/DN100DN100/DN80DN80
    Max. dist.horizontallym30030030020015050
    verticallym100/80100/8080/60406020
    Diesel enginekw8456444040NONE
    Main oil pump140 double140/112 double112/80 double805040
    Motor powerkw554537222215/11
    Output pressureMpa8-138-136-85-85-83-5
