Brand Name : | KEMING |

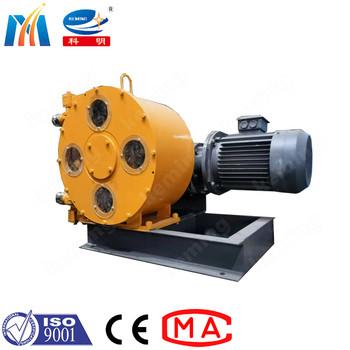

Model Number : | KH150 KH Series Hose Pump |
Certification : | CE,MA |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 100 Set/Per Month |
Delivery Time : | 10~20 Work Day |
Industrial Hose Pump is the very mature products with different kinds of standard models and many special models designed as the customer’s request. The working pressure ranges from 0.6~1.5 MPa, and output capacity from 0.01~50 m3/h.
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. High vacuum, strong self-suction capacity.
3. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
4. Convenient maintenance, less wearable parts (except extruded hose).
1. Construction --- pump and spray of cement, mortar, plaster,
slurry, fine aggregates concrete ...
2. Mining industry --- delivery of mining slurry, gold pulp,
tailing, thick pulp, filling materials...
3. Water treatment --- delivery of water, sewage, thick slurry,
precipitated sludge...
4. Pharmacy --- delivery of drug liquids, harmful and corrosive
materials...
5. Textile industry --- delivery of fibers, dyes, additives...
6. Paper making and printing industry --- delivery of paper slurry,
ink, glue...
7. Ceramic and glass industry --- delivery of glaze, slurry,
pigment...
8. Brewing industry --- delivery of beer or wine, treatment of wine
sediment...
9. Food industry --- delivery of beverage, cream, juice, milk,
chocolate, addictive...
10. Chemical industry --- delivery of corrosive, acid, alkali,
phosphate liquid, inorganic materials, suspending liquid,
electroplate liquid, precipitate ...
11. OEM: customized pump manufacture for industrial corollary
equipment.
Model | Rated output m3/h | Rated pressure | Rated power kw | Max. aggregate size mm | Max. suction dist. m |
KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
KH25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
KH32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
KH40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
KH50 | 4.0-8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
KH65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
KH75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
KH90 | 30.0-40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
KH100 | 40.0-50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
KH130 | 50.0-70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
KH150 | 70.0-80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
KH200 | 100.0-110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
![]() |
