    Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KGP400/850/100 KEMING Grout Plant Machine
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling

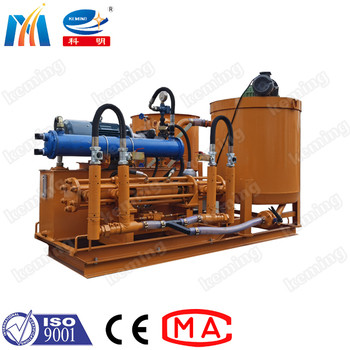

    Double cylinders piston pump KEMING Grout Plant Machine for cavity filling application

    KGP400/850/100 KEMING Grout Plant Machine Introduction:

    KEMING Grout Plant Grout Unit has double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.

    KGP400/850/100 KEMING Grout Plant Machine Features:

    1. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.

    2. Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.

    3. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.

    KGP400/850/100 KEMING Grout Plant Machine Technical Parameters:

    Model

    KGP

    200/500/50S

    KGP

    200/500/50

    KGP

    300/750/80

    KGP

    400/850/100

    KGP

    500/1000/200

    Max output (L/min)50(70)50(60)80(100)100(120)200(220)
    Max pressure (Mpa)471679
    Mixer volume (L)200200300400500
    Storage volume (L)5005007508501000
    Total power (kw)12.5/18.5-E18/22-E29/37-E31.7/37-E29/37-E
    37-D48-D55-D55-D55-D


    KGP400/850/100 KEMING Grout Plant Machine Application:

    1. Soil mixing

    2. Compaction grouting

    3. Pipe lubrication.

    4. Jet drilling.

    5. Grouting operations

    6. Cavity filling.

    7. Anchor-, rock-, bottom in injection.


    Model

    KGP

    200/500/50S

    KGP

    200/500/50

    KGP

    300/750/80

    KGP

    400/850/100

    KGP

    500/1000/200

    Max output (L/min)50(70)50(60)80(100)100(120)200(220)
    Max pressure (Mpa)471679
    Mixer volume (L)200200300400500
    Storage volume (L)5005007508501000
    Total power (kw)12.5/18.5-E18/22-E29/37-E31.7/37-E29/37-E
    37-D48-D55-D55-D55-D
