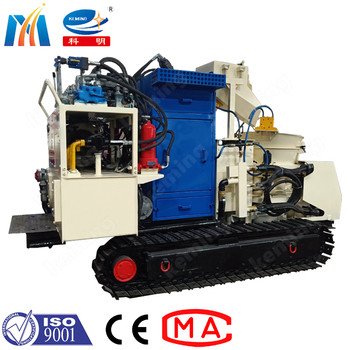

    90% Dust Reduction Remote Conveying Gunite Machine With Micro Adjustment

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : PS5IL-J Remote Conveying Gunite Machine
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    90% Dust Reduction Remote Conveying Gunite Machine With Micro Adjustment

    More than 90% dust reduction Remote Conveying Gunite Machine with micro adjustment

    PS5IL-J Remote Conveying Gunite Machine Introduction:

    1. The friction plate is automatically pressed hydraulically.

    2. The whole set of equipment has only one motor, which greatly shortens the wiring and auxiliary time of the motor before and after the spraying operation.

    3. High degree of automation, walking, spraying, dust removal and automatioc turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.


    PS5IL-J Remote Conveying Gunite Machine Features:


    1. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

    2. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

    3. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the pgysical and mental health of the operators.

    PS5IL-J Remote Conveying Gunite Machine Parameters:

    Spraying part

    Capacity

    m3/h

    2~7

    Delivery distance

    m

    >300

    Max. aggregate size

    mm

    ≤20

    Delivery pipe ID.

    mm

    φ51

    Air consumption

    m3/min

    ≤8

    Rotor speed

    r/min

    11

    Dedusting part

    Capacity

    m³/h

    800

    Pressure

    Pa

    2600

    Walking mechanism

    Way of walking

    Crawler

    Walking speed

    km/h

    ≤1.5

    Gradeability

    ≤15

    Braking method

    Hydraulic

    Hydraulic system

    Motor Power

    kw

    18.5

    Fuel tank capacity

    L

    200

    Cooling method

    Air cooling
