    JZC Series Concrete Mixer Machine 80mm For Roads Bridge

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : JZC500 JZC Series Concrete Mixer
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

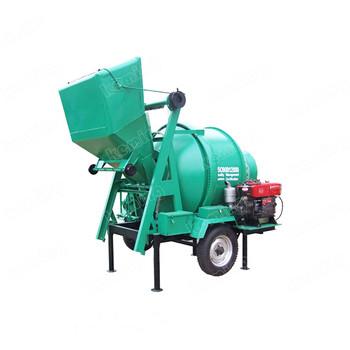

    JZC Series Concrete Mixer Machine 80mm For Roads Bridge

    Used in roads bridge making JZC Series Concrete Mixer with many application situation

    JZC500 JZC Series Concrete Mixer Introduction:

    1. The mixing drum of JZC mixer rotates forward for mixing and reverses for discharge.

    2. Each tank can mix 300 to 750 liters of concrete (referring to the volume of concrete after tamping), and can produce 8 to 75 cubic meters per hours.

    3. JZC can mix plastic and semi-dry concrete.


    JZC500 JZC Series Concrete Mixer Features:


    1. During fixed mixing, a pit can be dug to make the hopper mouth flush with the ground and convenient for feeding.

    2. concrete mixer is suitable for general construction sites, roads, bridge peojects and small and medium-site concrete component factories.


    JZC500 JZC Series Concrete Mixer Application:


    1. In addition to being used as a single unit, it can be combined with a batching unit to synthesize a simple mixing station.

    2. The series of mixers includes five main models: JZC300, 350,400, 500, and 750. And JZC750 is a fixed type.

    JZC500 JZC Series Concrete Mixer Technical Parameters:

    ModelJZC300JZC350JZC400JZC500JZC750
    Charging volume (L)4805606408001200
    Discharging capacity (L)300350400500750
    Productivity (m3/h)8-1210-1412-1618-2025-30
    Rev of drum (r/min)1714141312
    Max. size of aggregate (mm)6060608080
    Water-supply error≤2%≤2%≤2%≤2%≤2%
    Discharge height(mm)12501250125015001800
    Stirring motor(kW)45.55.57.511
    Lifting motor(kW)//4.54.55.57.5
    Water pump motor (kw)0.550.550.750.751.1
    Tire size6.00-166.00-166.00-167.50-16
    Towing speed(km/h)20202020

    Outline dimension

    L*B*H(m)

    2.3*2*2.82.8*2.2*2.83*2.3*2.93.3*2.5*3.73.8*2.1*3.8
    Machine Weight (kg)13001400140018002500
