    Weight Ratio Pneumatic Grouting Pump With Special Shaped Pipe Fittings

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : Pneumatic Grouting Pump
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

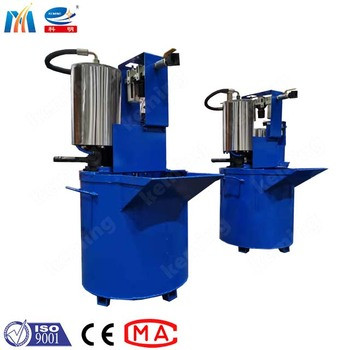

    Weight Ratio Pneumatic Grouting Pump With Special Shaped Pipe Fittings

    Superior weight ratio Pneumatic Grouting Pump with special-shaped pipe fittings

    Pneumatic Grouting Pump Introduction:

    1. As one of the pillar products of our company, grouting pump products have a total of 18 models, which are widely used in the support operations of coal mine roadways, highways, high-speed railway tunnels, construction foundation pits, etc.

    2. Among them, there are 5 types of mine pneumatic grouting pumps, all of which have the certificate of coal mine safety mark (1 type of synchronous pneumatic grouting pump).

    3. It is suitable for grouting support of coal mine roadway, gas drainage and sealing, high pressure water injection of coal seam, etc.

    4. Pneumatic Grouting Pump is mainly composed of: grouting pump, agitator, mixing barrel, inlet pressure gauge, slurry outlet slurry pressure gauge, special-shaped pipe fittings, regulating valve, quick connector, lubricator and other auxiliary components.

    Weight Ratio Pneumatic Grouting Pump With Special Shaped Pipe Fittings


    Pneumatic Grouting Pump Features:

    1. Pneumatic Grouting Pump is a lightweight and high-performance equipment specially developed by our company for sealing and grouting. It takes compressed air as the only power source, the core pneumatic pump adopts advanced built-in sliding automatic reversing design, the slurry cylinder is a unique built-in differential double-acting piston structure, and is equipped with a powerful pneumatic mixer. Air-operated grouting pump with superior weight ratio.
    2. Pneumatic Grouting Pump is novel and unique in design, beautiful in appearance, particularly compact in structure, small in size, light in weight, easy to use, easy to carry, easy to disassemble and maintain, and is especially suitable for sealing and grouting with a large range of mobility in coal mines.
    3. Pneumatic Grouting Pump is equipped with an inlet pressure regulator valve, a pressure gauge at the grouting outlet, and a high-pressure ball valve. The grouting pressure can be adjusted by adjusting the grouting flow.
    4. The mixer is equipped with a pneumatic motor, which can realize the speed of stirring according to the air volume and air pressure, realize the mixing uniformity of the sealing material, and enhance the grouting strength; at the same time, there is a nominal ratio scale in the barrel, which can realize the mixing of the material. Precise ratio.
    5. The pump body can realize automatic pressurization and is equipped with a pressure gauge and a lubricator, which ensures the durability and practicability of the pump body.
    6. The maximum value of the inlet pressure and the grouting pressure can be adjusted, and at the same time, the grouting can be automatically stopped after the grouting pressure reaches the set maximum value.
    7. The air inlet of the pump is MT-19 quick-plug interface, and the pulp outlet can use MT-19 quick-plug interface, which realizes the convenient and fast connection of the discharge pipe, and the sealing is reliable.

    Pneumatic Grouting Pump Application:

    1. It is a multi-functional pneumatic grouting pump with super performance-to-weight ratio.

    2. It is especially suitable for sealing and grouting with a large range of mobility in coal mines.

    Pneumatic Grouting Pump Technical Parameters:

    ModelZBQ-25/2
    ItemUnitParameters
    Discharge flowL/min0-30
    Discharge pressureMpa0-5.5
    rated working pressureMpa0.5
    Suction pipe diametermm45
    Outlet pipe diametermm13
    noise leveldB(A)≤85
    Air consumptionm3/min≤2
    Volume efficiency%90
    Weight (without mixing bucket)kg20
    Dimension(L*W*H)mm285*200*1060

    Weight Ratio Pneumatic Grouting Pump With Special Shaped Pipe Fittings

    Company Information

    As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.


    Main Products:

    wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
