    Dry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal Mine

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPC-6A KPC Shotcrete robot Machine
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Dry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal Mine

    Dry wet dump material sprayer KPC Shotcrete robot Machine applied in coal mine

    KPC-6A KPC Shotcrete robot Machine Introduction:

    1. KEMING Shotcrete robot Machine is suitable for dry, wet or wet and dry mixing.

    2. It adopts explosion-proof electrical design and can be used in underground coal mine environment.

    3. KEMING Shotcrete robot Machine has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.


    Dry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal Mine

    KPC-6A KPC Shotcrete robot Machine Application:

    1. KEMING Shotcrete robot Machine is an ideal equipment for any working space, even in narrow tunnel construction.

    2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.

    3. KEMING Shotcrete robot Machine can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.


    Dry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal Mine


    KPC-6A KPC Shotcrete robot Machine Parameters:

    ParameterModelKPC-8AKPC-6A
    Dimensions in transport mode4500*1080*2200mm2500*900*1680mm
    Weight3000kg2400kg
    Max. length of operation8400mm7000mm
    Outrigger expansion width2500mm2300mm
    Support shotcrete capacity0-25m3/h0-10m3/h

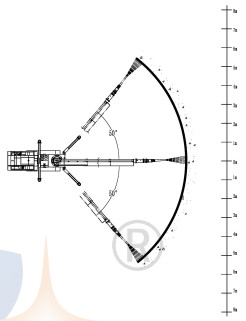

    Boom parametersMax.spraying height8.2m6.2m
    Max. spraying width11m7m
    Hose ID51/57/64mm51/57/64mm
    Arm frame telescopic distance2.7m2.35m
    Boom expansion max. length6m3.5m
    ChassisMax. gradient of walking25%20%
    Ground slope2%2%
    Walking speed0.5km/h0.6km/h
    Ground distance390mm150mm
    PowerHydraulic system output11kw7.5kw
    Voltage380-1140v380-1140v

    Dry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal MineDry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal Mine

    Dry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal MineDry Wet Dump Sprayer KPC Shotcrete Robot Machine For Coal Mine

    Company Information

    As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.


    Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.

    In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
