    4 Hydraulic Legs Shotcrete Robot Machine Wet Concrete For Hydropower Station

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KEMING Shotcrete robot
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

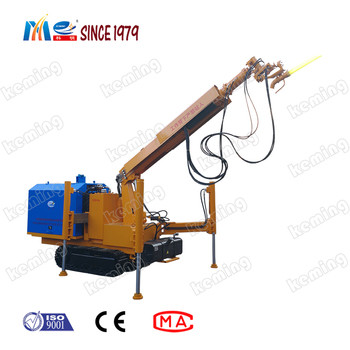

    4 Hydraulic Legs Shotcrete Robot Machine Wet Concrete For Hydropower Station

    Good performance KEMING Shotcrete robot Machine can use in hydropower station

    KEMING Shotcrete robot Introduction:

    1. KEMING Shotcrete robot Machine has 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.

    2. It adopts explosion-proof electrical design and is able to be used in underground coal mine environment.

    3. KEMING Shotcrete robot Machine is suitable for dry, wet or wet and dry mixing material.


    4 Hydraulic Legs Shotcrete Robot Machine Wet Concrete For Hydropower Station

    KEMING Shotcrete robot Application:

    1. KEMING Shotcrete robot Machine is widely applied in mining well, hydropower station, urban construction, hydropower station and other engineering constructions.

    2. It is an ideal equipment for any working space, especially in narrow tunnel construction.

    3. KEMING Shotcrete robot Machine can be used for slope stability, excavation and support, shotcrete support of small vertical shaft in coal mine, tunnel or power station construction.


    4 Hydraulic Legs Shotcrete Robot Machine Wet Concrete For Hydropower Station


    KEMING Shotcrete robot Parameters:

    ParameterModelKPC-8AKPC-6A
    Dimensions in transport mode4500*1080*2200mm2500*900*1680mm
    Weight3000kg2400kg
    Max. length of operation8400mm7000mm
    Outrigger expansion width2500mm2300mm
    Support shotcrete capacity0-25m3/h0-10m3/h
    Boom parametersMax.spraying height8.2m6.2m
    Max. spraying width11m7m
    Hose ID51/57/64mm51/57/64mm
    Arm frame telescopic distance2.7m2.35m
    Boom expansion max. length6m3.5m
    ChassisMax. gradient of walking25%20%
    Ground slope2%2%
    Walking speed0.5km/h0.6km/h
    Ground distance390mm150mm
    PowerHydraulic system output11kw7.5kw
    Voltage380-1140v380-1140v

    Company Information

    Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.


    Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
