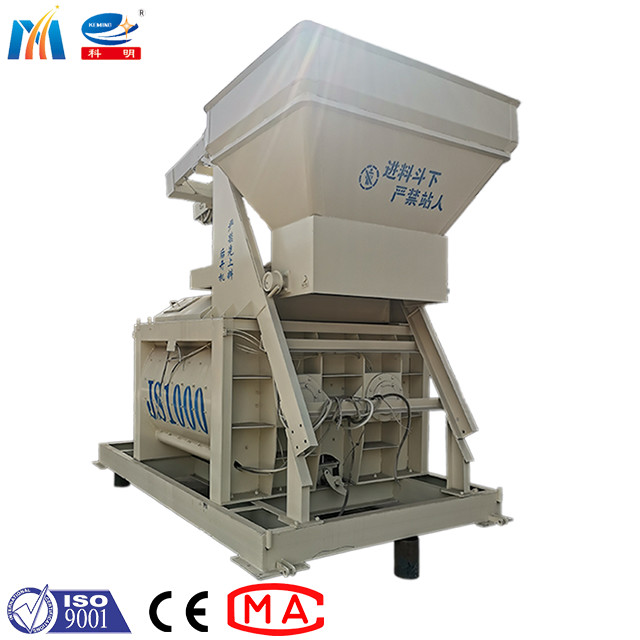

Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model from wholesalers

    Buy cheap Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model from wholesalers
    • Buy cheap Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model from wholesalers

    Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : JS Model Forced Concrete Mixer
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model

    Twin shaft mixing machine JS Model Forced Concrete Mixer from JS500 to JS2000 model

    JS Model Forced Concrete Mixer Introduction:

    1. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc.

    2. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.

    3. JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.

    Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model


    JS Model Forced Concrete Mixer Application:


    1. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc.

    2. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.

    3. JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.

    JS Model Forced Concrete Mixer Technical Parameters:

    ModelJS500JS750
    Discharging capacity L500750
    Charging capacity L8001200
    Productivity m3/h<25<35
    Max aggregate size mm<40/50<40/50
    Mixing blade2*72*7
    Rev of drum r/min3131
    Stiring motor kw18.530
    Lifting motor kw5.57.5
    Water pump motor kw1.11.5
    Dimension L*B*H mm4461*3050*41804951*3650*6225


    ModelJS1000JS1500JS2000
    Discharginh capacity L100015002000
    Charginh capacity L160024003200
    Productivity m3/h5075100
    Max aggregate size mm80/6080/6080/60
    Mixing blade25.5r/min 2*725.5r/min 2*823r/min 2*9
    Stirring motor kw37 or 18.5*230*237*2
    Lifting motor kw1518.522
    Water pump motor kw2.2(up)3(down)3(up)4(down)4(up)5(down)
    Hopper lifting speed m/min21.92326.8
    Dimension L*B*H mm Transp4640*2250*22505058*2250*24405860*2250*2735
    Working mm8765*3436*95409645*3436*970010720*3870*10726
    Weight87001113015000
    Discharge height mm400040004000

    Twin Shaft Forced Concrete Mixer 2000L From JS500 To JS2000 Model

    Company Information

    Business Scope:

    As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
