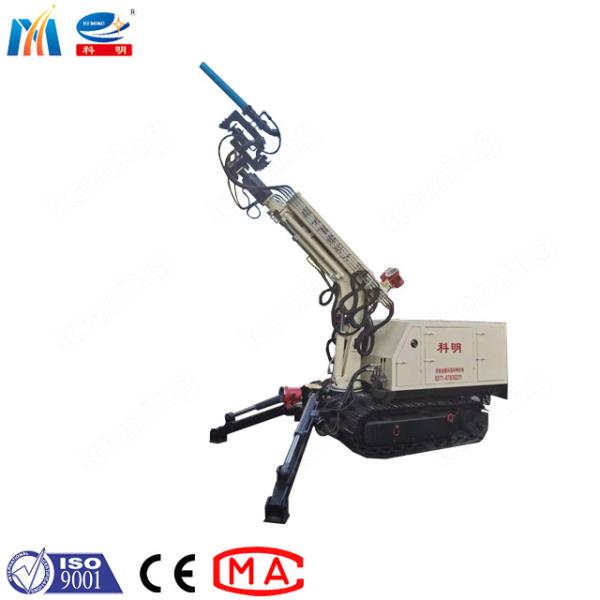

    KPC 11kw Robotic Shotcrete Equipment Unique Protective Cover Hydraulic Drive

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPC Robotic Shotcrete Equipment
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    KPC 11kw Robotic Shotcrete Equipment Unique Protective Cover Hydraulic Drive

    Unique protective cover KPC Robotic Shotcrete Equipment to protect the robot arm

    KPC Robotic Shotcrete Equipment Introduction:

    1.Concrete spray is suitable for dry, wet or wet and dry mixing.

    2.independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spray process.

    3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.

    4.unique protective cover, can protect the robot arm.

    KPC Robotic Shotcrete Equipment Parameters:

    Parameter

    KPC-6A

    KPC-8A

    Max. operation length

    7000

    8400

    Outrigger expansion width

    2300

    2500

    Support shotcrete capacity m3/h

    0-10

    0-25

    Boom

    Max. spraying H

    6.2m

    8.2m

    Max. spraying W7m11m

    Hose id

    51/57/64mm

    Arm frame telescopic dis.

    2.35m

    2.7m

    Boom expansion max. L

    3.5m

    6m

    Chassis

    Max. walk gradient

    20%

    25%

    Walking speed

    0.6km/h

    0.5km/h

    Ground dis.

    150mm

    390mm

    Power

    Hydraulic system output

    7.5kw

    11kw

    Voltage

    380-1140V

    KPC Robotic Shotcrete Equipment Application:

    1.Concrete spray is suitable for dry, wet or wet and dry mixing.

    2.independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spray process.

    3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.

    4.unique protective cover, can protect the robot arm.

    KPC 11kw Robotic Shotcrete Equipment Unique Protective Cover Hydraulic Drive

    Company Business Scope:

    As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
