    Rational Structure Wet Mix Shotcrete Machine With Feeder Used In The Tunnel

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : JPS7I-L Shotcrete Machine with Feeder and Mixer
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Rational Structure Wet Mix Shotcrete Machine With Feeder Used In The Tunnel

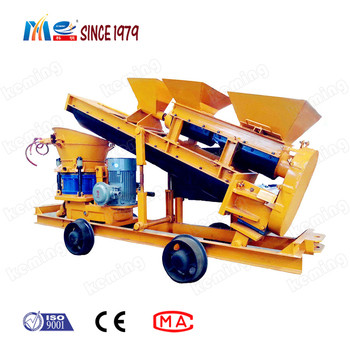

    Rational Structure Machine Shotcrete Machine with Feeder and Mixer Used in the Tunnel

    Shotcrete Machine Set Information:

    1. Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.

    2. Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..

    3. Shotcrete Machine Set It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.

    KEMING Shotcrete Machine Set with Feeder Technical Parameters:

    Items

    Unit

    Technical parameters

    Model

    JPS7I-L Shotcrete Machine

    Capacity

    m3/h

    5~7

    Conveying dist.

    m

    70/20

    Suitable water and cement ratio

    cement/gravel=1:3-5

    Aggregate size max.

    mm

    ≤20

    Conveying pipe ID.

    mm

    φ50

    Operating pressure

    MPa

    0.2~0.4

    Air consumption

    m3/min

    7-8

    Material feeding height

    m

    1.2

    Motor power

    kw

    5.5(feeder)/7.5(main motor)

    Voltage

    V

    380/660 or 660/1140

    Machine gauge

    mm

    600(900)

    Dimensions (Length×width×height)

    mm

    2930×1152×1620

    Total weight

    kg

    1250


    Shotcrete Machine Set Application:

    1. Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.

    2. Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..

    3. Shotcrete Machine Set It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.

    Rational Structure Wet Mix Shotcrete Machine With Feeder Used In The Tunnel


    FAQ

    ---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine

    1. Q: Which shotcrete machine should we choose?

    A: To recommend the most suitable model, please tell us:

    - Material: dry / damp mixture, or ready mixed wet mixture

    - Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h

    - Delivery distance (horizontally / vertically):

    - Driven type: electric motor, pneumatic motor, diesel engine


    2. Q: What should we do if there are some problems with the machine?

    A: The Operate Instruction will help with routine maintenance and common problems.

    Also, you can contact us for technical instruction by email, instant messenger or live video etc.

    Q: What is the vulnerable part? How many spares should we prepare?

    A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.

    Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.


    3. Q: What is the vulnerable part? How many spares should we prepare?

    A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.

    Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
