    Low Dust Concrete Shotcrete Machine Energy Saving Narrow Space Use

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KCPZ
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 5~10 Work Day
    • Product Details
    • Company Profile

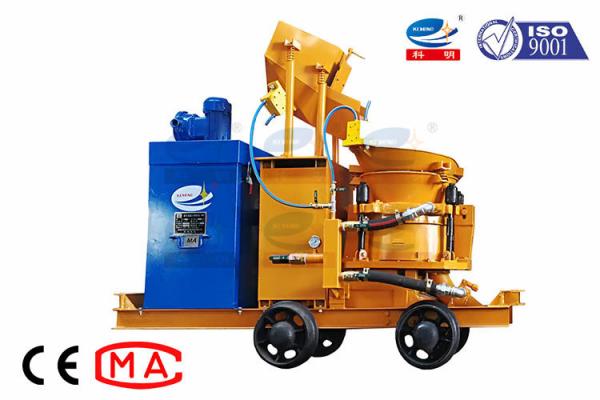

    Low Dust Concrete Shotcrete Machine Energy Saving Narrow Space Use

    Low Dust Concrete Shotcrete Machine Energy Saving Narrow Space Use

    Shotcrete Machine Parameters:

    Model
    KCPZ Shotcrete Machine
    Capacity
    6m3/h
    Delivery distance
    100m/30m (horizontal/vertical)
    Max. aggregate size
    ≤20mm
    Delivery pipe ID.
    φ51mm
    Rated working pressure
    0.5MPa
    Air consumption
    ≤8m3/min
    Feeding height
    1.1m
    Rebound rate
    ≤20%
    Dust concentration
    ≤15mg/ m3
    Rotor rev. speed
    11r/min
    Main motor power
    7.5 kW
    Dust collector motor power
    1.1kW
    Main motor rev. speed
    960r/min
    Accelerator adding hopper
    25kg
    Dimensions (Length×width×height)
    2150×900×1750 mm
    (including accelerator adding device)
    2150×900×1470 mm
    (excluding accelerator adding device)
    Total weight
    980 Kg

    Shotcrete Machine Features:

    1. KCPZ Dedusting Shotcrete Machine obtains the Invention Patent and Utility Model Patent. The machine structure and spraying nozzle have new designs.

    2. New environmental shotcrete machine, less environmental pollution (less than 90% of dust pollution of traditional machine), less harm to workers’ health.

    3. New spraying nozzle device, even concrete mixing, low rebound rate.

    4. Adding accelerator automatically and evenly, saving workers.

    5. Compact machine structure, simple operation, suitable for concrete operation in narrow space.

    Shotcrete Machine Innovative designs:

    1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.

    2. New dust removal technology and filter material, with good filtering effect and long service life.

    3. Drawer-type dust container, convenient to clean.

    4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.

    5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.
