    Large Capacity Wet Shotcrete Machine Portable Concrete Pump Machine

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KBS-8A
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

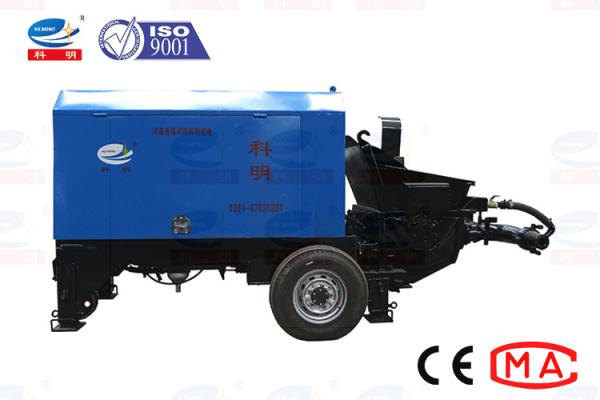

    Large Capacity Wet Shotcrete Machine Portable Concrete Pump Machine

    Large Capacity Wet Shotcrete Machine Portable Concrete Pump Machine

    Shotcrete Pump Parameters:

    Model
    KBS-8A hydraulic shotcrete machine
    Max. theoretical capacity
    m³/h
    12
    Working capacity
    m³/h
    3-8
    Max. system pressure
    Mpa
    16
    Working air pressure
    Mpa
    0.4-0.6
    Max. aggregate diameter
    mm
    15
    Max. theoretical vertical delivery dist
    mm
    150
    Max. theoretical horizontal delivery dist.
    mm
    400
    Total weight
    Kg
    2600
    Dimensions
    mm
    3800*1400*1730
    Main motor power
    KW
    22
    Voltage
    V
    380
    Hopper volume
    0.4
    Concrete slump
    cm
    12-18
    Dust concentration around
    mg/m³
    <6
    Feeding height
    mm
    1150
    Oil tank capacity
    L
    180
    Rebound rate
    %
    ≤10

    Shotcrete Pump Features:

    1. This machine has advanced technology, complete functions, large internal space and convenient maintenance.

    2. The hydraulic system adopts the mature hydraulic valve block with sensitive and reliable valves; The main oil pump adopts a manual variable pump, which can be manually adjusted to achieve continuous adjustment of injection volume.

    3. Large-capacity oil tank and forced air cooling with large flow rate can control the oil temperature of the system within a reasonable range, maximizing the service life of the system.

    4. Glasses plate and cutting ring (with automatic compensation device) adopts hard alloy with imported wear-resistant electrode, featuring anti-wear, small resistance, better material suction performance.

    5. The electrical part sets a variety of automatic protection modes in the control program, which replaces the complicated relay circuit, featuring the simplest operation, lowest failure rate and highest reliability.

    6. As for mixing system, the seal and bearing adopt a dual independent sealing structure, which can eliminate slurry leakage and reduce the possibility of damage of hydraulic motor.

    7. Main lubrication points are automatically or manually lubricated, which effectively extends the service life of vulnerable parts.

    Shotcrete Pump Application:

    KBS-8A shotcrete pump is a kind of S-tube valve concrete pump driven by electric motor. With reliable system, low breakdown rate, convenient maintenance, this pump is widely applied in hydraulic engineering, electric power engineering, railways, highways, tunnels, bridges and culverts, ports, mines, high buildings, national defense engineering and so on.

    Large Capacity Wet Shotcrete Machine Portable Concrete Pump Machine
