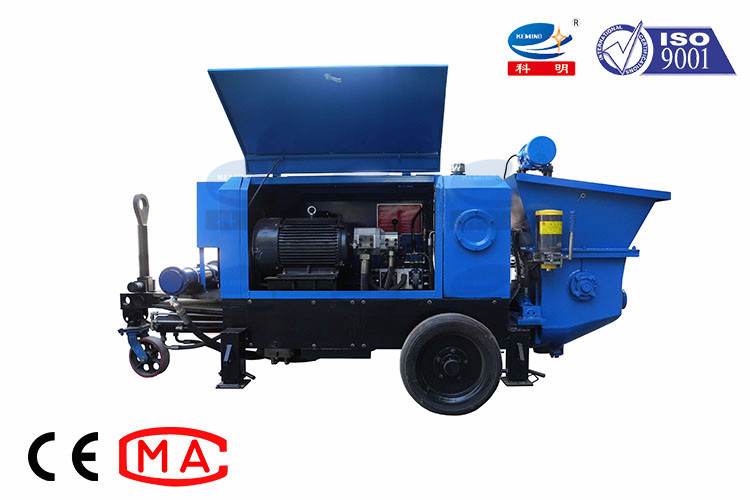

    High Efficiency Wet Mix Shotcrete Machine Hydraulic Concrete Pump Long Spraying Distance

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KSP-9
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

    High Efficiency Wet Mix Shotcrete Machine Hydraulic Concrete Pump Long Spraying Distance

    High Efficiency Wet Mix Shotcrete Machine Hydraulic Concrete Pump Long Spraying Distance

    Hydraulic Concrete Pump Parameters:

    Items
    Unit
    Technical parameters
    Capacity
    m3/h
    3~8
    Aggregate size max.
    mm
    15
    Fineness modulus
    ≥2.5
    Addictive ratio of liquid accelerator
    %
    0~9
    Conveying pipe ID.
    mm
    51/57/64
    Concrete slump
    cm
    10~18
    System air pressure
    MPa
    ≥0.7
    Work air pressure
    MPa
    0.4~0.7
    Air consumption
    m3/min
    ≥13
    Conveying dist. max.
    horizontally
    m
    150
    vertically
    m
    80
    Main motor power
    kw
    22
    Working oil pressure max.
    Mpa
    19
    Output pressure max.
    Mpa
    8
    Material feeding height
    mm
    1100
    Dimensions (Length×width×height)
    mm
    3250×1200×1300
    Weight
    kg
    1600

    Hydraulic Concrete Pump Features:

    * Full Hydraulic Mini Shotcrete Pump Machine

    * high efficiency: full hydraulic pumping technic, reliable performance.

    * long spraying distance: 150m horizontally and 80m vertically.

    * continuously adjustable flux and accelerator adding volume.

    * low fitting consumption, long service life of wearing parts.

    * flexible movement, convenient operation and maintenance

    Hydraulic Concrete Pump Application:

    * convey fine aggregate concrete and mortar for high buildings.

    * grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.

    * spray plain concrete and fiber concrete in engineering construction.

    * convey and spray refractory and thermal insulation material.

    * spray afforestation soil in ecological environment construction.

    * pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
