    Rotary Type Shotcrete Machine Spare Parts Rubber Plate Rotor Sealing Plate

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPZ / KSP Spares
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 10000 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Rotary Type Shotcrete Machine Spare Parts Rubber Plate Rotor Sealing Plate

    Rotary Type Shotcrete Machine Spare Parts Rubber Plate Rotor Sealing Plate

    Specification:

    Model
    -3
    -4
    -5
    -6
    -9
    wieght
    Upper plate
    kg
    4
    6
    6.5
    7.5
    7
    Lower plate
    kg
    5
    7
    7.5
    8.5
    8.5
    Dimensions
    Skeleton frame diameters
    mm
    380
    405
    485
    490
    518
    Rubber plate
    mm
    350
    438
    440
    460
    475

    Features:

    high flexibility, high wear resistance, anti-aging, high pressure resistance, impact resistance.

    Structure features:

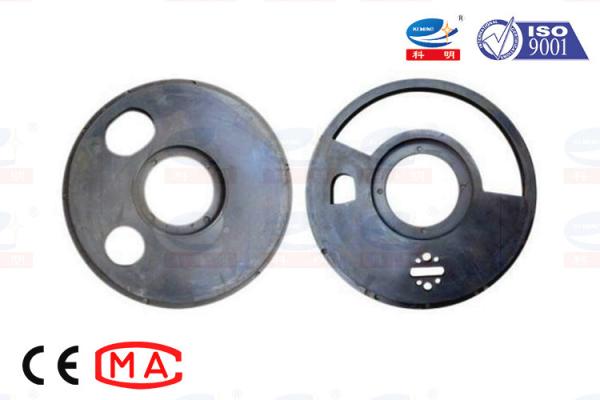

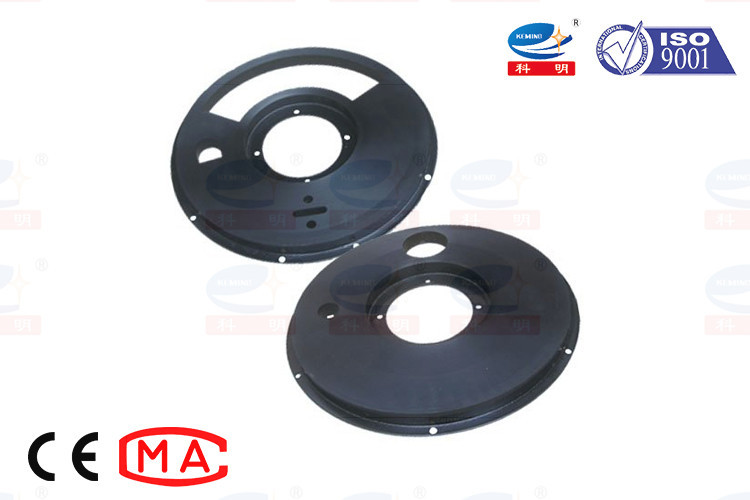

    There are a upper sealing plate and a lower sealing plate close to two rotor lining plates.

    The inner hole are air holes while the fan-shaped hole of upper sealing plate and the outer hole of the lower sealing plate are material unloading hole.

    Material:

    Polyurethane

    Applications:

    In rotor-type shotcrete machine, the sealing plates work with rotor lining plates as a sealing part. It is the main component of shotcrete machine, and should be checked and replaced regularly.
