    0.6Mpa Pressure Dry Mix Shotcrete Machine For Tunnel Construction Equipment

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : PC5I
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

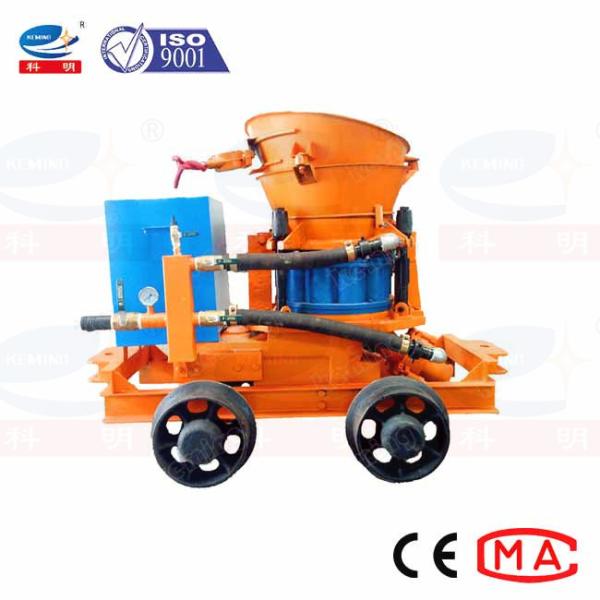

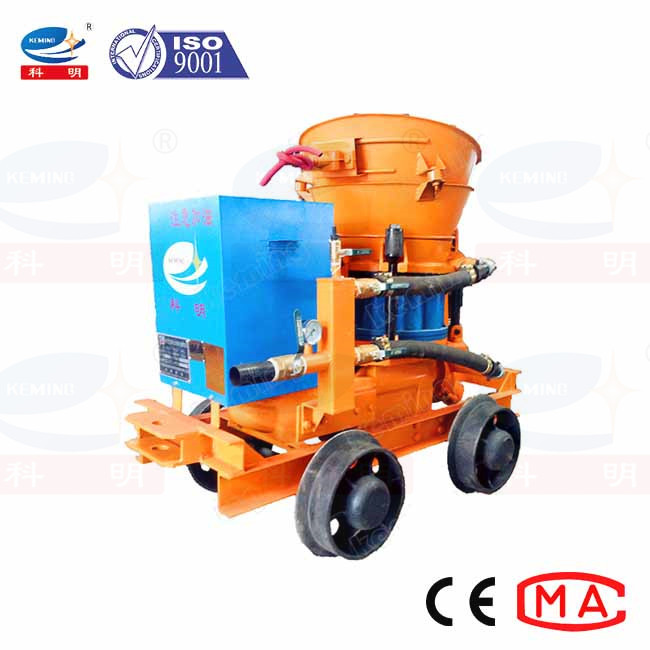

    0.6Mpa Pressure Dry Mix Shotcrete Machine For Tunnel Construction Equipment

    Dry Mix Shotcrete Machine Used For Tunnel Construction Equipment

    Shotcrete Machine Features:

    1. PC5I Series Dry Shotcrete Machine have diesel engine (PZ-3D,PZ-5D,PZ-7D,PZ-9D), electric motor (PZ-3,PZ-5,PC5I,PZ-7,PZ-9) and pneumatic motor (PZ-3A,PZ-5A,PZ-7A,PZ-9A) etc.

    2. PC5I Explosion proof Dry Shotcrete Machine is consisted of driving device, rotor assembly, air system, concrete spraying system, explosion-proof motor etc.

    3. KPZ Series Dry Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

    Shotcrete Machine Application:

    1. PC5I Dry Concrete Shotcrete Machine can be used for dry or half wet concrete spray construction.

    2. PC5I Dry Concrete Shotcrete Machine is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

    Shotcrete Machine Parameters:

    Conveying dist. max.
    100/30m
    Suitable mixture ratio
    cement/sand and gravel=1:3~5
    Suitable water and cement ratio
    >0.20
    Aggregate size max.
    φ20mm
    Conveying pipe ID.
    φ51mm
    Operating pressure
    0.5Mpa
    Air consumption
    8 m3/min
    Material feeding height
    1.1m
    Rotor rotation speed
    11r/min
    Motor type
    YBK2-132M-6
    Motor power
    5.5kw
    Motor rotation rate
    960r/min
    Voltage
    380v or 660v
    Machine gauge
    600mm (customized)
    Dimensions(Length×width×height)
    1520×820×1280mm
    Total weight
    800kg
