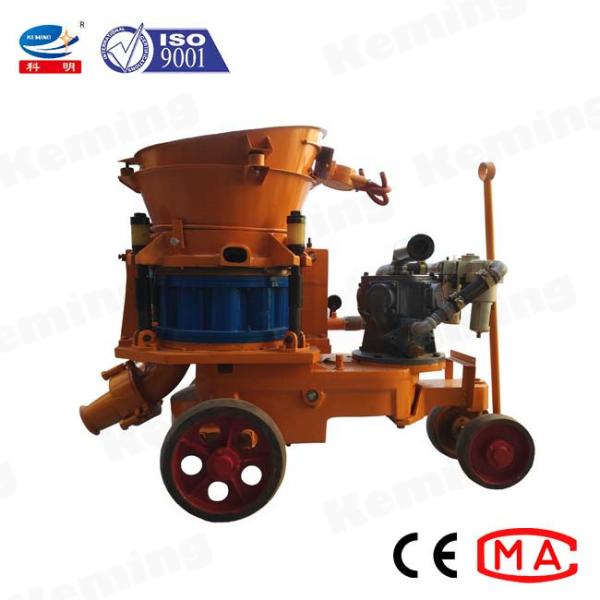

    5.5m3/H 5.5kW Concrete Spray Shotcrete Machine

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPZ-5A
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

    5.5m3/H 5.5kW Concrete Spray Shotcrete Machine

    Hot Selling Dry Mix Shotcrete Machine High Performance With Best Quality

    Shotcrete Machine Features:

    1. KPZ-5A Pneumatic Shotcrete Machine have four-point clamping device ,which make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life..

    2. KPZ-5A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.

    3. KPZ-5A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

    Shotcrete Machine Application:

    1. KPZ-5A Pneumatic Shotcrete Machine can be used for dry or half wet concrete spray construction.

    2. KPZ-5A Pneumatic Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

    Shotcrete Machine Parameters:

    Model
    KPZ-5A Pneumatic Shotcrete Machine
    Capacity
    4.5-5.5 m3/h
    Max. conveying dist.
    ≤200 m
    Water-cement ratio
    ≤0.4
    Max. aggregate size
    20 mm
    Delivery hose ID.
    φ51 mm
    Working pressure
    0.2-0.6 MPa
    Air consumption
    8 m3/min
    Air consumption of air motor
    8 m3/min
    Dimensions(Length×width×height)
    1520×820×1200 mm
    Total weight
    600 kg
