    CE 3.6m3/H 5.5KW 4Mpa 60L/Min Cement Grouting Pump

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : ZBS
    Certification : CE, MA
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

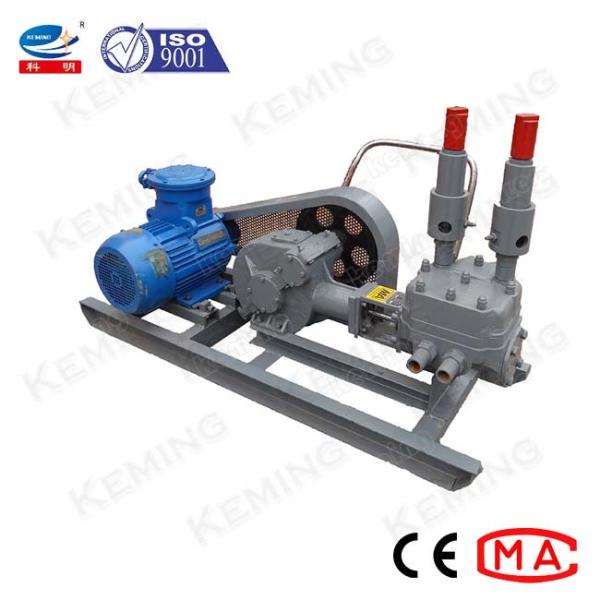

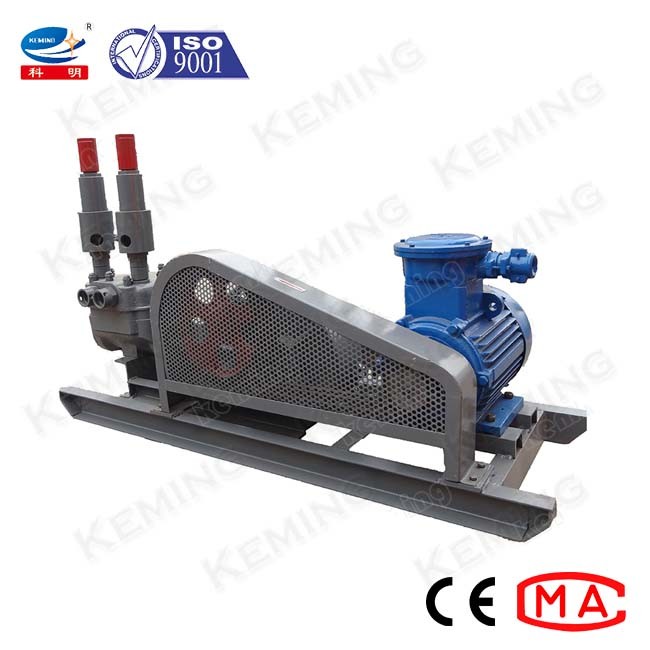

    CE 3.6m3/H 5.5KW 4Mpa 60L/Min Cement Grouting Pump

    Better Flexibility Best Choice ZBS Cement Grouting Pump For Sale

    Grouting Pump Application:

    1. ZBS cement grout pump can be used to grout cement paste, mortar and other liquid (particle size ≤ 3mm).Medium temperature is between 5 to 80 ℃.The water cement ratio (weight ratio) of solid-liquid mixture should be 0.75 or higher. The maximum output pressure should be 4 MPa, and work flow 3.6 m3/h.

    2. ZBS cement grout pump is widely used pressure grout in tunnels, coal mine, bridges and dams, building foundation, and other underground projects.

    3. ZBS cement grout pump can work in inflammable and explosive sites,dusty and rainy environment or other bad conditions.

    Grouting Pump Features:

    1. ZBS3.6/4-5.5 cement grout pump is a single cylinder double action piston pump.

    2. ZBS grout pump is mainly composed of pump head, pump body, frame, protective cover, clutch, water filter, air chamber and pressure gauge. The pump body, pump head, frame and other parts are bolted to facilitate the decomposition of difficult transportation and removal.

    Technical Parameters:

    Model
    ZBS grouting pump
    Rated output
    3.6 m3/h
    Rated pressure
    4 Mpa
    Reciprocating times
    85/min
    Motor power
    5.5KW
    Volumetric coefficient
    ≥92%
    Pump efficiency
    ≥84%
    Piston diameter
    75mm
    Piston stroke
    85mm
    Sipper diameter
    20mm
    Weight
    280kg
    Dimension
    1500×500×700mm

    CE 3.6m3/H 5.5KW 4Mpa 60L/Min Cement Grouting Pump
