Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump from wholesalers

    Buy cheap Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump from wholesalers
    • Buy cheap Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump from wholesalers

    Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KS
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 20~30 work days
    • Product Details
    • Company Profile

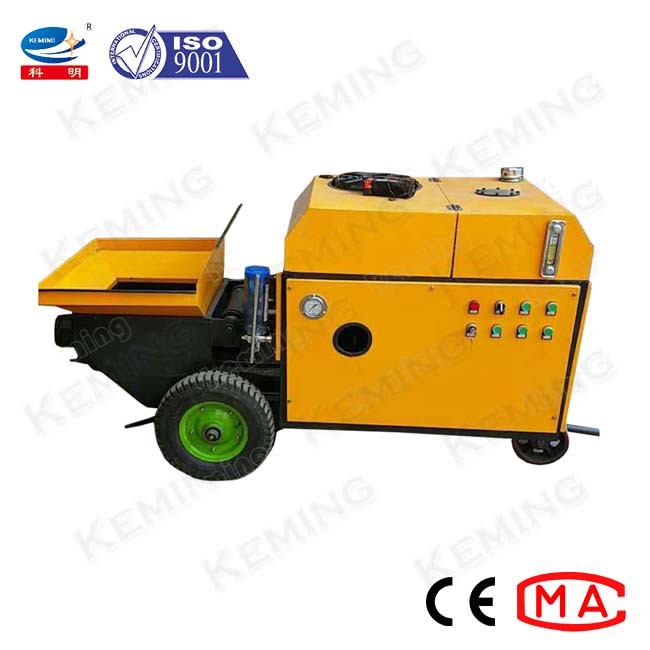

    Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump

    China Factory Price 6m3 Small Portable Trailer Stationary Mini Concrete Pumps

    Concrete Pump Application:

    1. Pumping wet-mixed mortar for high buildings and secondary structure construction.

    2. KS-6 concrete pump is widely used for secondary construction filling, reinforcement grouting, fillback grouting and bolt supporting in floor heating engineering, roofing, high-rise building walls, reservoirs, hydropower stations, ports, docks, foundation treatment, soft foundation, tunnels, subways, mining construction etc.

    Concrete Pump Features:

    1. Small size, compact structure, convenient operation and movement.

    2. Full hydraulic system, stable performance,long pumping distance.

    3. S tube distribution valve, pumping larger aggregates mortar/concrete.

    Concrete Pump Parameters:

    Model
    KS-6 concrete pump
    Max capacity
    5~6 m³
    Working theory
    S valve
    Feeding height
    0.7m
    Max aggregate size
    5~15mm
    Max pressure: working pressure
    15MPa: 10MPa
    Hydraulic oil cooling type
    Air cooling
    Max vertical distance
    20m
    Max horizontal distance
    50m
    Delivery pipe ID.
    80mm
    Motor power
    11kw
    Weight
    600kg
    Dimensions
    1800*700*1100mm

    Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump

    Quality Grouting Pipe ID 80mm 10Mpa 6m3/H Concrete Mixer Pump for sale
