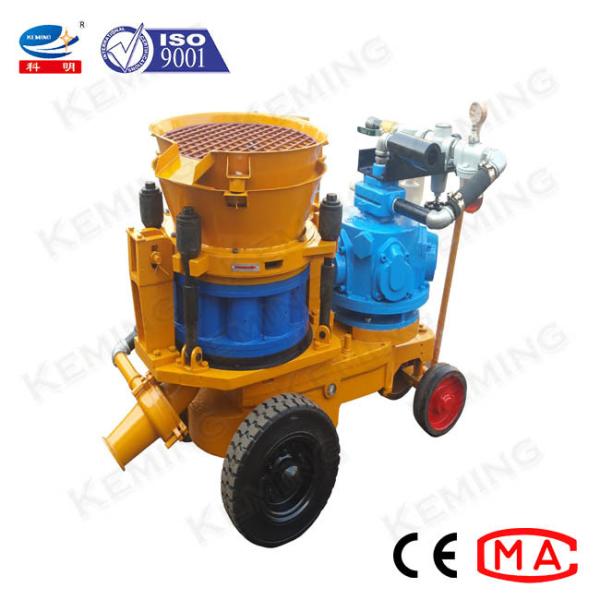

    7m3/H 0.6Mpa 6.5kW Pneumatic Dry Shotcrete Machine

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPZ-7A
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 10~20 Work Day
    • Product Details
    • Company Profile

    7m3/H 0.6Mpa 6.5kW Pneumatic Dry Shotcrete Machine

    Factory Price Pneumatic Dry Shotcrete Machine With High Quality

    Shotcrete Machine Features:

    1. Pneumatic shotcrete machine works by the compressed air of the coal mine instead of power supply. It can be used to conduct local repair shotcreting in some remote roadway without power supply.
    2. Compared to other shotcrete machine, pneumatic rotary shotcrete machine takes shorter time, reduces a lot of preparation and equipment failure and maintenance work,

    saves the working time, extends the actual shotcreting time and improves working efficiency.

    3. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).

    4. KPZ-7A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.

    5. KPZ-7A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

    Shotcrete Machine Application:

    1. KPZ-7A Pneumatic Shotcrete Machine can be used for dry or half wet concrete spray construction.

    2. KPZ-7A Pneumatic Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

    Shotcrete Machine Parameters:

    Model
    KPZ-7A Pneumatic Shotcrete Machine
    Capacity
    5.5-6.5 m3/h
    Max. conveying dist.
    ≤150 m
    Water-cement ratio
    ≤0.35
    Max. aggregate size
    20 mm
    Delivery hose ID.
    φ51/57 mm
    Working pressure
    0.2-0.6 MPa
    Air consumption
    9 m3/min
    Air consumption of air motor
    8 m3/min
    Dimensions(Length×width×height)
    1520×850×1350 mm
    Total weight
    950 kg
    7m3/H 0.6Mpa 6.5kW Pneumatic Dry Shotcrete Machine
