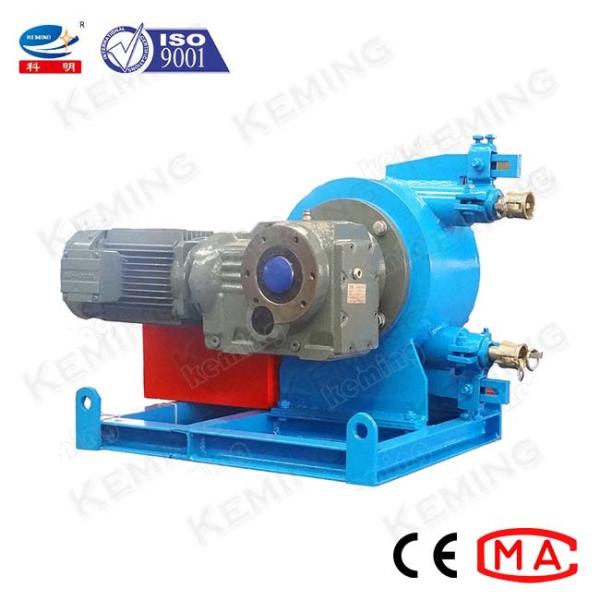

    3mm Aggregate 1.5mpa 1300L/H Peristaltic Pump Machine

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KH25C
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 10~30 Work Days
    • Product Details
    • Company Profile

    3mm Aggregate 1.5mpa 1300L/H Peristaltic Pump Machine

    Mini Peristaltic Pump Machine For Best Price Made In Zhengzhou

    Hose Squeeze Pump Features:

    KH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

    Hose Squeeze Pump Application:

    1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.

    2. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.

    3. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.

    4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...

    5. Paper industry: paper pulp, liquid sulfur.

    6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.

    7. Oil industry: drilling fluid,crude oil.

    8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.

    9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.

    10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.

    Technical Parameters:

    Model
    KH25C Hose Squeeze Pump
    Output
    800~1300 L/h
    Rated pressure
    1.5 MPa
    Rev.
    50~80 r/min
    Hose length
    900 mm
    Max. particle dia.
    3 mm
    Max. suction dist.
    3 m
    Motor power
    1.1/ 1.5 KW
    Reducer type
    Gear reducer
    Note:
    1. Driven power could be electric motor or diesel engine.
    2. Various squeeze hoses are available for pumping different materials.
    3. Customized pump is available.
