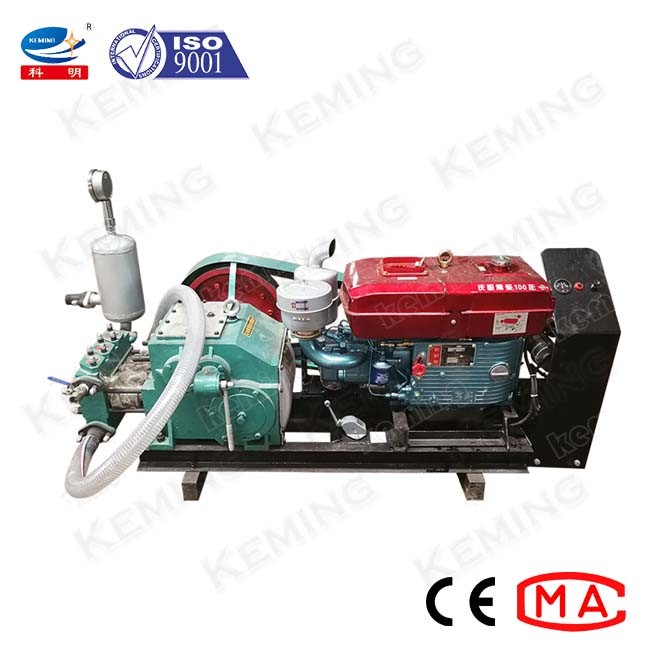

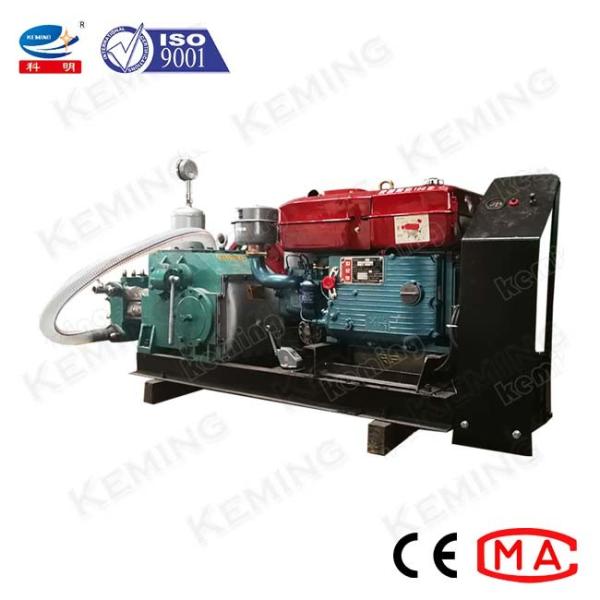

    Vacuum Dry Cement Grouting Pump Submersible Slurry Pump

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KBW-60D
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets/Per Month
    Delivery Time : 5~8 Work Days
    • Product Details
    • Company Profile

    Vacuum Dry Cement Grouting Pump Submersible Slurry Pump

    Widely Used dry cement pump sludge vacuum pump submersible slurry pump

    Slurry Pump Features:

    1. KBW-60D is horizontal single-cylinder reciprocating single-action piston pump.

    2. Compact structure, well sealing performance, high stability and high pressure.

    3. High quality pump parts, less wearing parts, long service life, low construction cost.

    4. High pump efficiency, less noise and dust, environmental operation, easy maintenance.

    Slurry Pump Application:

    1.KBW mud pump is widely used for grouting and mud jacking in engineering construction.

    2.KBW mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with drilling machine.

    3.KBW mud pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration.

    Slurry Pump Parameters:

    Model
    KBW-60D grouting pump
    Capacity (L/min)
    60
    Cylinder number (piece)
    1
    Cylinder diameter (mm)
    80
    Piston stroke (mm)
    73
    Pressure (MPa)
    5
    Diesel power (hp)
    12
    Input speed (r/min)
    2200
    Suction hose ID. (mm)
    51
    Discharge hose ID. (mm)
    32
    Maximum suction height (m)
    2
    Triangle belt model
    A1700 (3 grooves)
    Dimensions (L x W x H) (mm)
    2100×550×800
    Weight (kg)
    280
