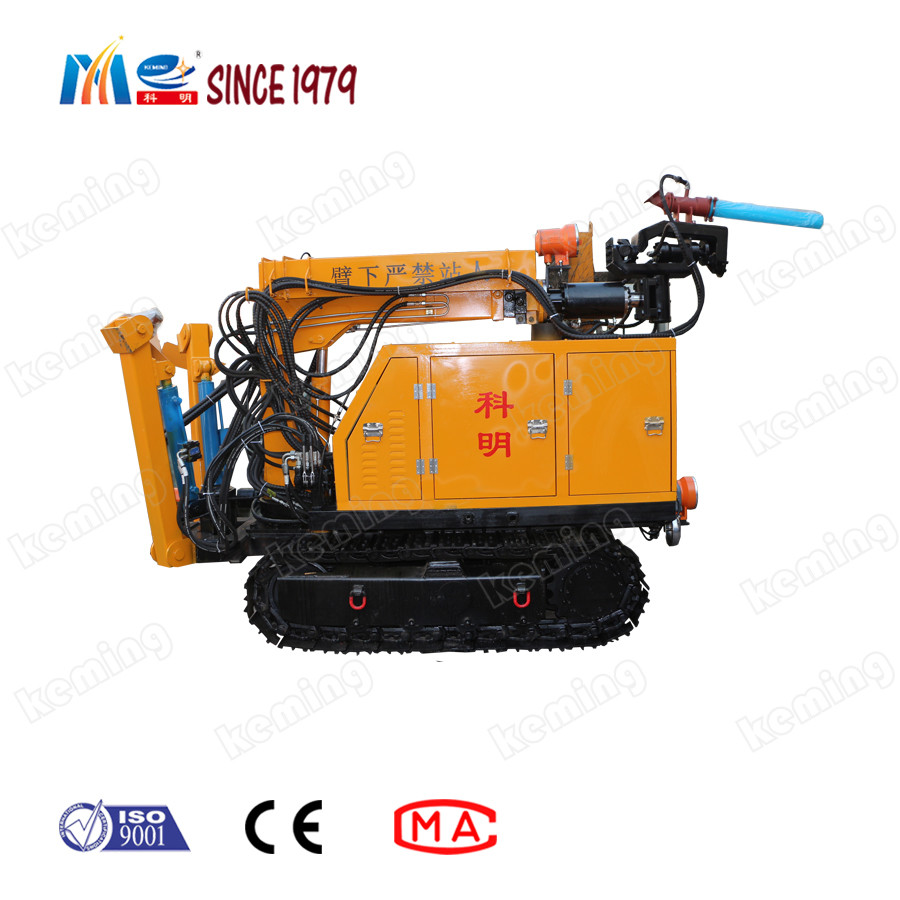

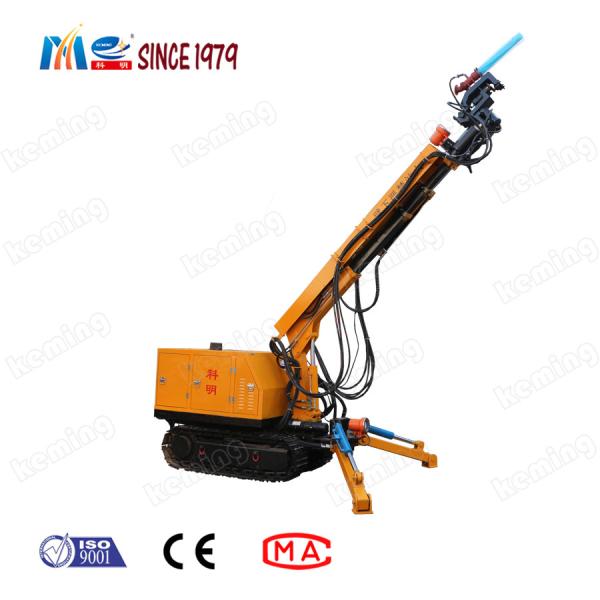

    10m3/H Robotic Arm Concrete Shotcrete Machine Dry Mixing

    Ask Lasest Price
    Brand Name : KEMING
    Model Number : KPC-6A
    Certification : CE,MA
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Per Month
    Delivery Time : 5~10 Work Day
    • Product Details
    • Company Profile

    10m3/H Robotic Arm Concrete Shotcrete Machine Dry Mixing

    Hot Selling Shotcrete Machine With Robotic Arm 10m3/H Quality Guaranteed From Famous Chinese Brand

    Shotcrete Machine Features:

    1.Concrete spray is suitable for dry, wet or wet and dry mixing.

    2.independent hydraulic drive, 2 hydraulic legs, greatly improving the stability of the equipment during the spray process.

    3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.

    4.unique protective cover, can protect the robot arm.

    Shotcrete Machine Application:

    1. KPC-6A Shotcrete robot is an ideal equipment for any working space, even in narrow tunnel construction.

    2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.

    3. It can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.

    Shotcrete Machine Parameters:


    ParameterModelKPC-6A

    Dimensions in transport mode


    Dimensions (length x width x height) in transport mode


    2500*900*1680 mm

    Weight


    2400 kg
    Maximum length of operation7000 mm
    Outrigger expansion width2300 mm
    Support shotcrete capacity0~10m3/h
    Boom parametersMaximum spraying height6.2m
    Maximum spraying width7m
    Hose ID51mm/57mm/64mm
    Arm frame telescopic distance2.35m
    Boom expansion maximum length3.5m
    ChassisMaximum gradient of walking20 %
    Ground slope2%
    Walking speed0.6km/h
    Ground distance150 mm
    PowerHydraulic system output7.5 kW
    Voltage

    380~1140V

    50Hz
