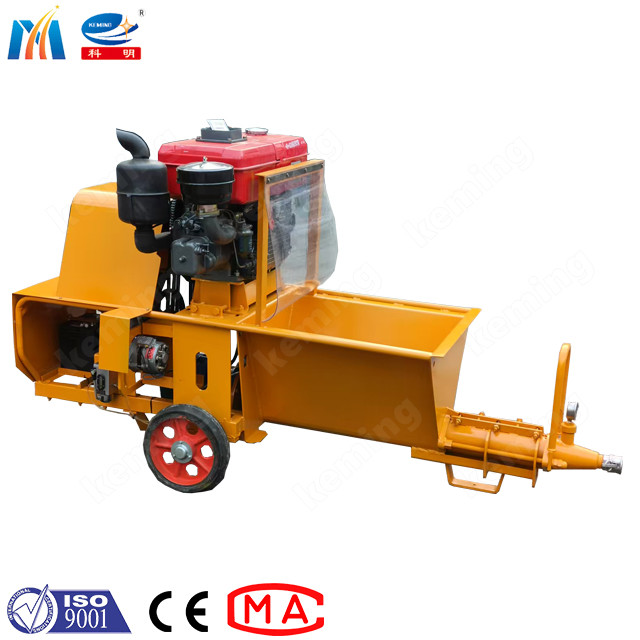

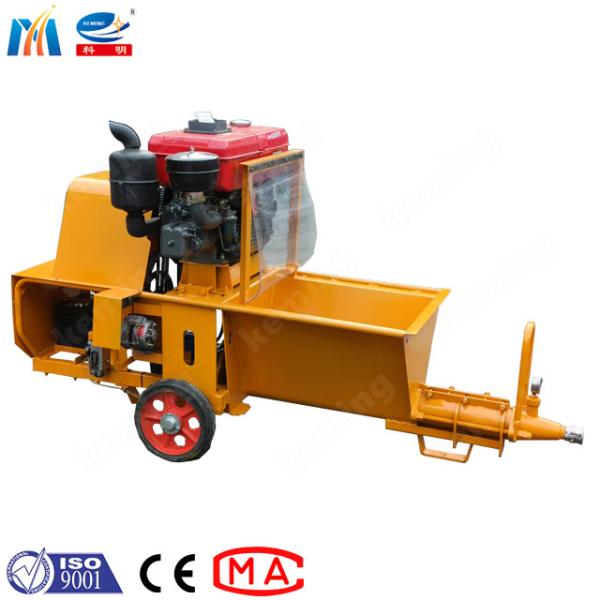

KLW-180D screw mortar sprayer is specially designed for on-site
construction at construction sites. It is used for pumping and
spraying cement mortar, dry mortar, fiber mortar, thermal
insulation mortar, anti-cracking mortar, refractory mortar and
self-leveling mortar. It can also be used for pressure filling and
grouting of the above materials.
2. Structure And Working Principle
The mortar spraying machine is mainly composed of a diesel engine,
a pulley, a reducer, a storage hopper, a booster stator, a booster
screw, an air compressor, an air supply system, wheels, a conveying
pipeline, a spray gun assembly, etc.
The diesel engine drives the reducer, conveying screw and air
compressor to transport the material from the storage hopper to the
booster bin composed of the booster screw and the booster stator
for step-by-step pressurization, and then transport it to the spray
gun through the conveying pipeline. At the muzzle position, the
high-pressure air output by the air compressor sprays the material
evenly onto the wall.
Technical Parameters:
| Name | Unit | Parameter |
| Flow capacity | L/min | 50 |
| Conveying pipe diameter | mm | DN38 |
| Feeding height | mm | 640 |
| Hopper volume | L | 100 |
| Horizontal pump distance | m | 40-60 |
| Vertical pump distance | m | 15-30 |
| Max. Pump pressure | MPa | 3 |
| Max. Materials size | mm | 5 |
| Air compressor capacity | L/min | 250 |
| Conveying pipe diameter | DN | 32 |
| Air pipe diameter | Φ | 10 |
| Diesel engine model | / | L24 |
| Rated power/rotation speed | Kw/r/min | 17/2200 |
| Dimension | mm | 2450*1050*1350 |
| Weight | Kg | 488 |
Customization:KEMING KLW Mortar Grout Pump - Customized Service
Thank you for choosing KEMING KLW Mortar Grout Pump. As a leader in
the industry, we understand the importance of providing customized
service to meet your specific needs. Our team of experts is
dedicated to ensuring that you receive the best possible product
and experience. Here are some key features of our customized
service:
- Personalized consultation to understand your requirements
- Customization of product specifications to fit your needs
- Flexible minimum order quantity of 1 unit
- CE certification to ensure quality and safety
- Rated pressure of 3MPa for efficient grouting
- Machine capacity of 3-10 M³/h for a wide range of applications
- Pumping motor power of 5.5/7.5kW for reliable performance
- Output of 3-10m³/h for fast and precise grouting
- 1 year guarantee for your peace of mind
At KEMING, we are committed to providing you with the best mortar
grouting pump on the market. Contact us now to learn more about our
customized service and how we can help you achieve your project
goals.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is KEMING.
- Q: What is the model number of this product?
- A: The model number of this product is KLW.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: Does this product have any certifications?
- A: Yes, this product is CE certified.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1 unit.
